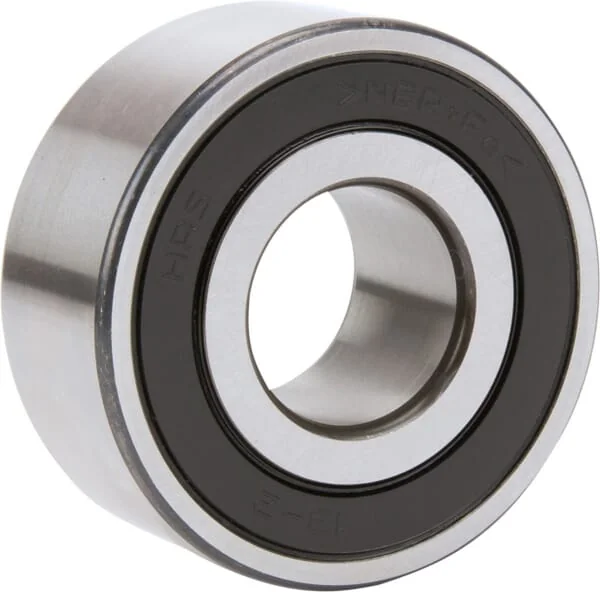

INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing

INA FAG - 3306BDXL2HRSTVHC3 - FAG Angular Contact Ball Bearing

€63.68

(Excl. VAT)

Price

(Excl. VAT)

€63.68

Product Description

The INA-FAG 3306BDXL2HRSTVHC3 is a high-performance double row angular contact ball bearing, part of the FAG X-Life series, known for its extended service life and reliability. It features a modified internal construction (BD) and is equipped with contact seals on both sides (2HRS) to protect against contaminants and ensure lubricant retention. The bearing incorporates a solid window cage made from glass fibre reinforced polyamide (TVH) and has a radial internal clearance greater than normal (C3), making it suitable for applications with higher operating temperatures or potential misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
30,2 mm
Weight
0,055 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
30 °

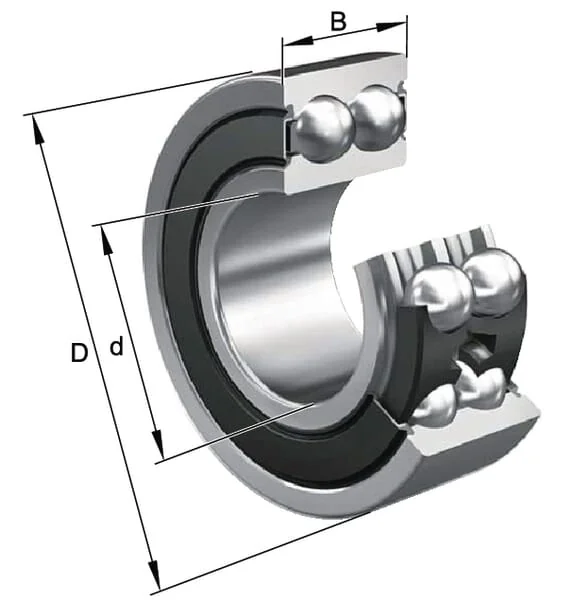

dInside diameter
30 mm
DOutside diameter
72 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
7800 r/min
Basic radial load static
29500 N
Basic radial load dynamic
43000 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
