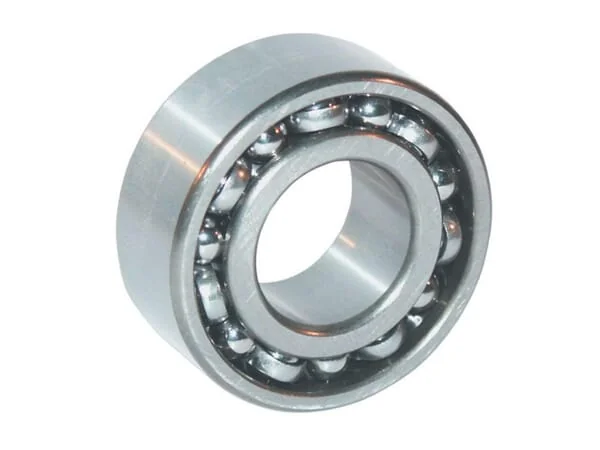

INA FAG - 3306C3 - Angular Contact Bearing C3

INA FAG - 3306C3 - Angular Contact Bearing C3

INA FAG - 3306C3 - Angular Contact Bearing C3

INA FAG - 3306C3 - Angular Contact Bearing C3

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

INA FAG - 3306C3 - Angular Contact Bearing C3

INA FAG - 3306C3 - Angular Contact Bearing C3

€54.21

(Excl. VAT)

Price

(Excl. VAT)

€54.21

Number of products

Product Description

The FAG 3306C3 is a high-performance double row angular contact ball bearing, manufactured by FAG (part of Schaeffler Group). It features a 30mm bore diameter, a 72mm outer diameter, and a 30.2mm width. Often found as the 3306 B TVH C3 variant, this bearing is designed for robust industrial and agricultural applications, offering high rigidity and precision. The C3 internal clearance is suitable for operating conditions involving higher temperatures or where shaft expansion needs to be accommodated, ensuring optimal performance and extended service life. This genuine FAG bearing provides reliable operation in demanding environments.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand

Equivalent OEM Part Numbers

Skf

Ntn

Koyo

Unit

Each

BWidth

30,2 mm

Weight

0,538 kg

Sealing

Open

Regreasable

Yes

Rows number

2

Contact angle

30 °

dInside diameter

30 mm

DOutside diameter

72 mm

Bearing model type

Angular contact ball bearings

Max rotation speed

10400 r/min

Ref rotation speed

8500 r/min

Basic radial load static

29500 N

Basic radial load dynamic

43000 N

Radial internal clearance code

C3

Manufacturer

INA/FAG
