INA FAG - 33109A - Bearing
INA FAG - 33109A - Bearing
INA FAG - 33109A - Bearing
INA FAG - 33109A - Bearing

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - 33109A - Bearing

INA FAG - 33109A - Bearing

€44.02

(Excl. VAT)

Price

(Excl. VAT)

€44.02

Product Description

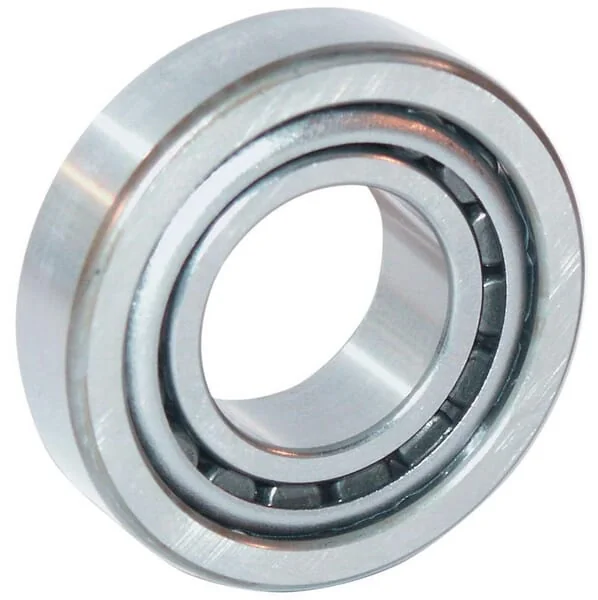

The INA-FAG 33109A is a high-quality single row tapered roller bearing, engineered to accommodate simultaneously acting radial and axial loads. This genuine FAG bearing is separable, meaning the inner ring with the roller and cage assembly can be mounted independently of the outer ring. It features a bore diameter of 45 mm, an outer diameter of 85 mm, and a width of 32 mm, making it suitable for various demanding applications in agricultural, construction, and industrial equipment requiring robust and reliable performance.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Part Numbers
33109a
Equivalent OEM Part Numbers

Fag

33109A

Ina

33109A

Skf

33109

Timken

33109

Ntn

33109

Koyo

33109
Unit
Each
TWidth
26 mm
Sealing
Open

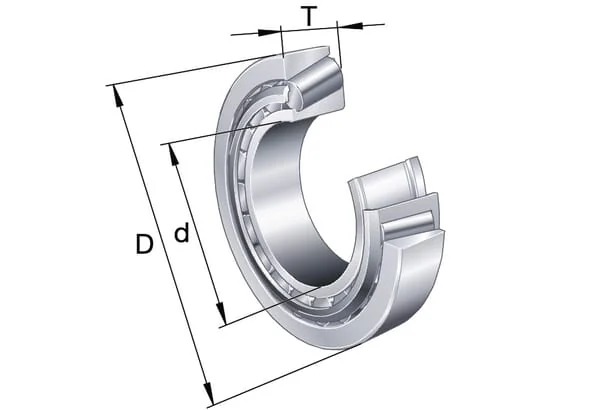

Properties
Absorb high radial and one-sided loads.
dInside diameter
45 mm
Application range
In a closed environment with grease and oil Wheel shafts Gearbox Axial piston pumps Planetary gear Rear wheel rockers
BInner ring width
26 mm
COuter ring width
20,5 mm
DOutside diameter
80 mm
Bearing model type
Tapered roller bearings
Max rotation speed
8800 r/min
Ref rotation speed
4800 r/min
Basic radial load static
114000 N
Basic radial load dynamic
83000 N
EAN
4054372931321
Manufacturer
INA/FAG
