INA FAG - 4206BBTVH - Bearing
INA FAG - 4206BBTVH - Bearing
INA FAG - 4206BBTVH - Bearing
INA FAG - 4206BBTVH - Bearing

In stock - ready to ship

Ships within 79 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - 4206BBTVH - Bearing

INA FAG - 4206BBTVH - Bearing

€33.76

(Excl. VAT)

Price

(Excl. VAT)

€33.76

Product Description

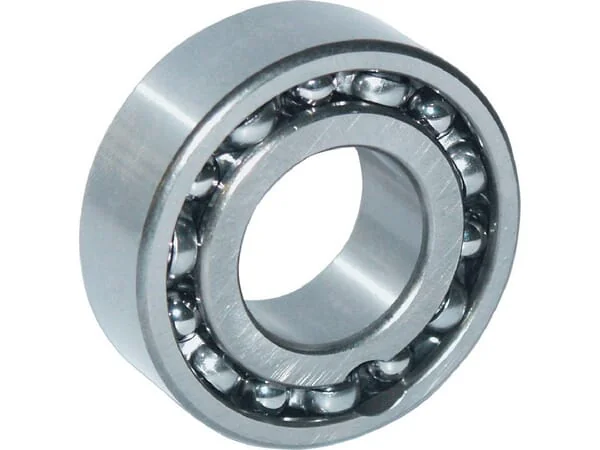

The INA-FAG 4206BBTVH is a high-quality double row angular contact ball bearing, manufactured by Schaeffler, known for its precision and durability. This bearing is designed to accommodate both radial and axial loads, making it suitable for a wide range of industrial applications. Its robust construction ensures reliable performance and extended service life. The 'BB' suffix typically indicates a standard design, while 'TVH' denotes a solid window cage made of glass fibre reinforced polyamide 66, which offers good sliding and emergency running properties.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
4206bbtvh
Unit
Each
BWidth
20 mm
Weight
0,28 kg
Sealing
Open
Material
Steel
Regreasable
Yes
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
30 mm
DOutside diameter
62 mm
Bearing model type
Deep groove ball bearings
Max rotation speed
9400 r/min
Ref rotation speed
9500 r/min
Content in sale unit
1 pcs
Basic radial load static
21600 N
Basic radial load dynamic
29000 N
Radial internal clearance code
CN
EAN
4026677966094
Manufacturer
INA/FAG
