INA FAG - E30KRR - INA Bearing Insert

OEM Supplier

SKU: ina-fag-e30krr

INA FAG - E30KRR - INA Bearing Insert

€32.44

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€32.44

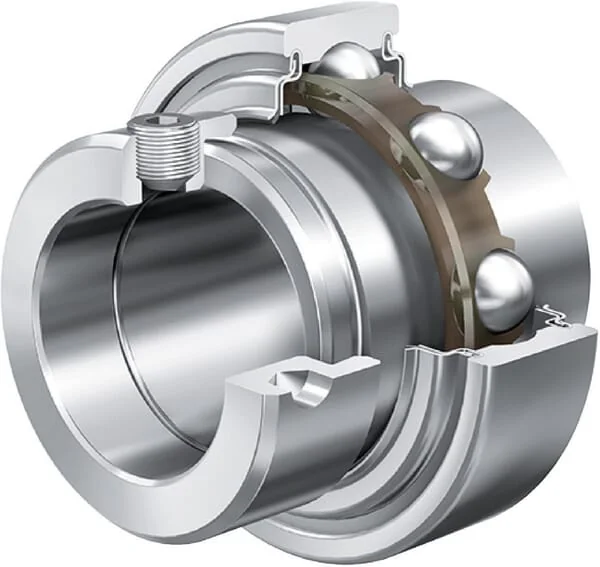

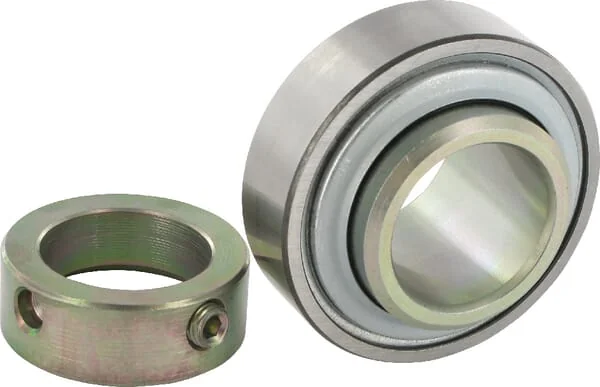

The INA-FAG E30-KRR is a robust radial insert ball bearing featuring a 30mm bore, an extended inner ring, and an eccentric locking collar for secure shaft attachment. Designed with RSR seals, it provides excellent protection against dust and moisture, making it ideal for demanding agricultural and industrial applications. This bearing ensures reliable performance and extended service life in various machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
e30krr
OEM Part Numbers

John Deere

New Holland

Unit
Each
Weight
0,2 kg
Material
Steel
Properties
Cylindrical outer ring with no lubrication holes Inner ring extended on both sides with clamping ring Sealed on both sides Polyamide housing
Consists of
Clamp bearing Clamp ring
Thread type
Metric
Thread pitch
1.25 mm
Thread diameter
8 mm
dInside diameter
30 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BOuter ring width
36,51 mm
CInner ring width
18,3 mm
DOutside diameter
62 mm
Basic radial load static
11300 N
Basic radial load dynamic
19500 N
Locking collar outside diameter
44,1 mm
Locking collar and inner ring width
48,4 mm
EAN
4012802783667
Manufacturer
INA/FAG
