Maintenance & Wear Parts

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

Number of products

In stock - ready to ship

Ships within 48 hours

Free shipping on orders over €60

Pay Securely with

INA FAG - GAR20DO2RSINA - Rod End

INA FAG - GAR20DO2RSINA - Rod End

€39.72

(Excl. VAT)

Price

(Excl. VAT)

€39.72

Number of products

Product Description

The INA GAR20DO2RS is a high-quality, genuine INA rod end bearing designed for demanding industrial applications. Featuring a 20mm bore diameter, 14mm width, and 42mm head diameter, this robust component has an M20x1.5 right-hand male thread and an overall length of 90mm. It includes 2RS seals for protection against contaminants, ensuring reliable performance and extended service life in various machinery.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

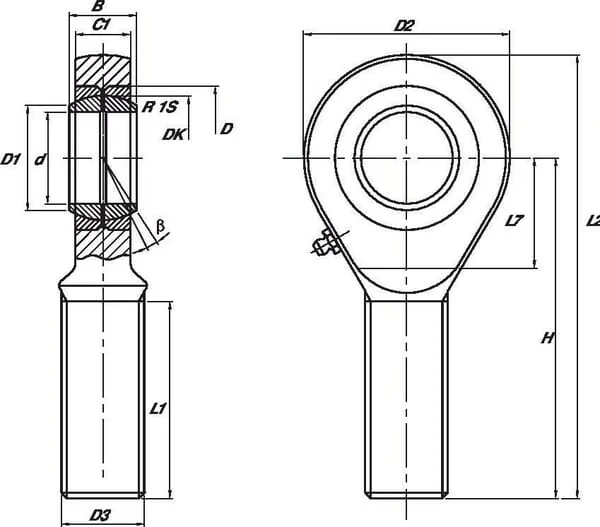

Product Details

Brand

Part Numbers

gar20do2rsina

Unit

Each

Weight

0,3 kg

Edge angle

9 °

BHole length

16 mm

Thread pitch

1.50 mm

Total length

104,5 mm

Technical info

Spherical bearing. Needs maintenance. Male thread DIN 24338 To DIN-series E, form A ISO 6126.

dHole diameter

20 mm

L1Thread length

43 mm

Thread direction

Right

Surface treatment

Zinc-plated

d3Thread diameter

M20

Head outside diameter

53 mm

Basic radial load static

75600 N

Shaft to center distance

27,5 mm

Basic radial load dynamic

29600 N

DBearing outside diameter

35 mm

C1Head width (hole length)

13 mm

hHole centre to bottom distance

78 mm

d1Outside diameter of inner ring

24,1 mm

EAN

4012802524987

Manufacturer

INA/FAG

Similar items you might like

INA FAG - GAY25NPPB - Tension Bearing with Adjusting Screw
INA FAG
€15.97
INA FAG - GAY15NPPB - Tension Bearing with Adjusting Screw
INA FAG
€16.65
INA FAG - GAY30NPPB - Tension Bearing with Adjusting Screw
INA FAG
€22.05
INA FAG - GAY20NPPB - Tension Bearing with Adjusting Screw
INA FAG
€17.03

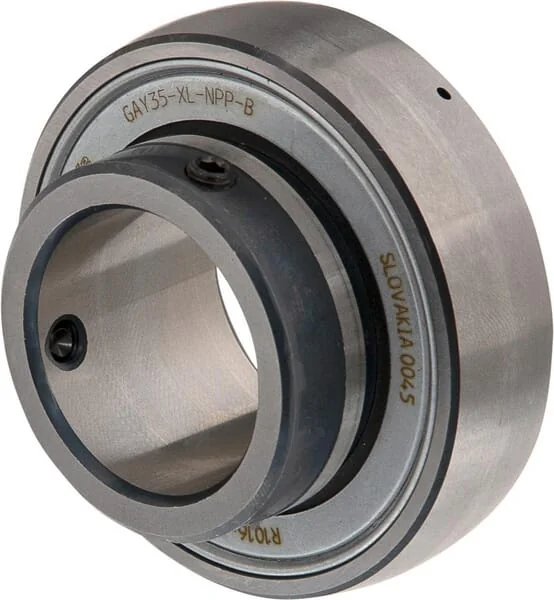

INA FAG - GAY35NPPB
INA FAG
€26.06

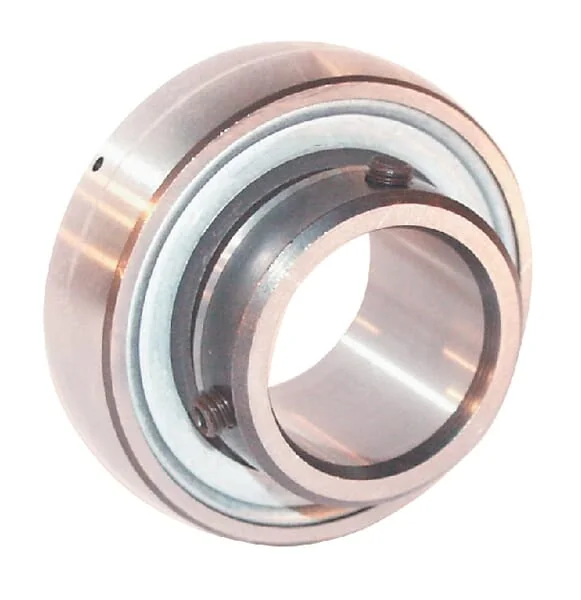

INA FAG - GAY45NPPB - Inner Bearing SB 209
