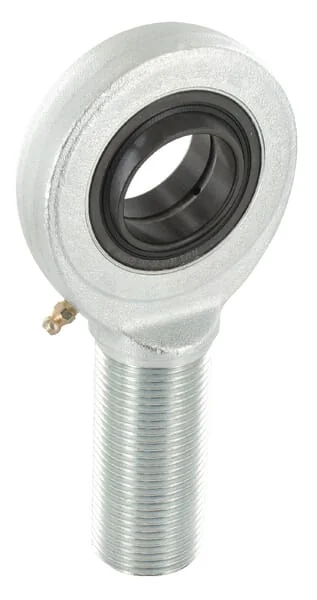

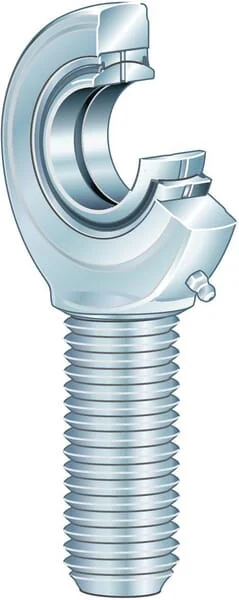

INA FAG - GAR30DO2RSINA - Rod Head

INA FAG - GAR30DO2RSINA - Rod Head

INA FAG - GAR30DO2RSINA - Rod Head

INA FAG - GAR30DO2RSINA - Rod Head

INA FAG - GAR30DO2RSINA - Rod Head

Number of products

In stock - ready to ship

Order now for delivery between 20 May and 23 May

Free shipping

Pay Securely with

INA FAG - GAR30DO2RSINA - Rod Head

INA FAG - GAR30DO2RSINA - Rod Head

€69.14

(Excl. VAT)

Price

(Excl. VAT)

€69.14

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

0,9 kg

Edge angle

6 °

Hole length

22 mm

Thread pitch

2.00 mm

Thread length

65 mm

Technical info

Spherical bearing. Needs maintenance. Male thread DIN 24338 To DIN-series E, form A ISO 6126.

d2Total length

146,5 mm

dHole diameter

30 mm

Thread diameter

M30

Thread direction

Right

Surface treatment

Zinc-plated

Head outside diameter

73 mm

Basic radial load static

119000 N

Bearing outside diameter

47 mm

Head width (hole length)

19 mm

Shaft to center distance

37 mm

Basic radial load dynamic

62300 N

Hole centre to bottom distance

110 mm

Outside diameter of inner ring

34,2 mm

Manufacturer

INA/FAG
