INA FAG - GAY15NPPB - Tension Bearing with Adjusting Screw

OEM Supplier

SKU: ina-fag-gay15nppb

INA FAG - GAY15NPPB - Tension Bearing with Adjusting Screw

€17.44

(excl. VAT)

In stock - ready to ship

Ships within 74 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€17.44

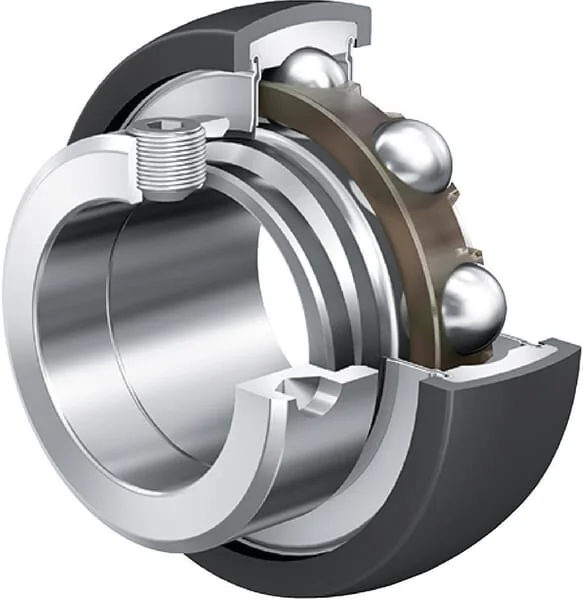

The INA-FAG GAY15NPPB is a genuine deep groove ball tension bearing featuring a spherical outer ring and an inner ring extended on one side. Designed for easy installation and adjustment, it includes an integrated adjusting screw for secure mounting. This robust bearing has an inner diameter of 15 mm, an outer diameter of 47 mm, and a width of 15.2 mm, with an inner ring width of 28.6 mm, making it suitable for various agricultural and industrial machinery applications requiring reliable tensioning.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
gay15nppb
Unit
Each
Weight
0,09 kg
Inner ring width
22 mm
dInside diameter
15 mm
BOuter ring width
12 mm
DOutside diameter
40 mm
SWWrench/Spanner size
2.5 mm
Basic radial load static
4750 N
Basic radial load dynamic
10100 N
Ball centre to end distance
6 mm
Outside diameter of inner ring
23,9 mm
Ball centre to grease hole distance
3,3 mm
Locking screw centre to end distance
4 mm
EAN
4012802806953
Manufacturer
INA/FAG
