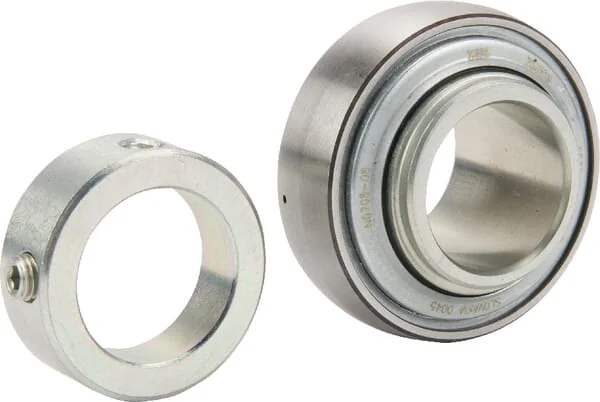

INA FAG - GE30XLKRRB2C - Radial Insert Ball Bearing

OEM Supplier

SKU: ina-fag-ge30xlkrrb2c

INA FAG - GE30XLKRRB2C - Radial Insert Ball Bearing

€46.50€39.74 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€46.50

Brand
Unit
Each
Weight
0,41 kg
Properties
Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal and additional metal seal Polyamide housing
Consists of
Clamp bearing Clamp ring
dInside diameter
30 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BInner ring width
43,8 mm
COuter ring width
21 mm
DspOutside diameter
62 mm
Locking collar width
48,5 mm
Basic radial load static
11300 N
Basic radial load dynamic
20700 N
Locking collar and inner ring width
48,5 mm
EAN
4012802793222
Manufacturer
INA FAG

The radial insert ball bearing made by INA FAG has part number GE30XLKRRB2C. It features an extended inner ring with clamping rings on both sides and a convex outer ring with lubrication holes. The bearing includes an R-seal and an additional metal seal, with a polyamide housing. It is made by an OEM supplier for mobile and stationary machinery applications.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement. Shop more than 17,981 genuine INA FAG spare parts.
