Home
Maintenance & Wear Parts
Bearings
Ball Bearings
INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG
INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG
INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG
INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG
INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG

INA FAG - GE45KLLB - Bearing Insert 45x85x22mm INA FAG

€59.05

(Excl. VAT)

Price

(Excl. VAT)

€59.05

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
0,84 kg
Properties
Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes Labyrinth seal Steel cage
Consists of
Clamp bearing Clamp ring
dInside diameter
45 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BOuter ring width
22 mm
CInner ring width
42,9 mm
DOutside diameter
85 mm
Max working temperature
180 °C
Min working temperature
-40 °C
Basic radial load static
20400 N
Basic radial load dynamic
32500 N
FOutside diameter of inner ring
57,9 mm
LLocking collar and inner ring width
56,5 mm
Manufacturer
INA/FAG

Similar items you might like

  • INA FAG

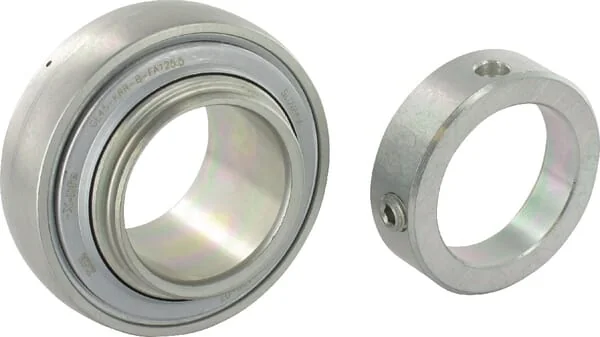

    INA FAG - GE45KRRBFA1255 - Bearing Insert 45x85x22mm INA FAG

    INA FAG

    €57.18

  • INA FAG

    INA FAG - GE50FO2RSINA - Radial Spherical Plain Bearing 50x90x56/36mm, INA FAG

    INA FAG

    €96.22

  • INA FAG

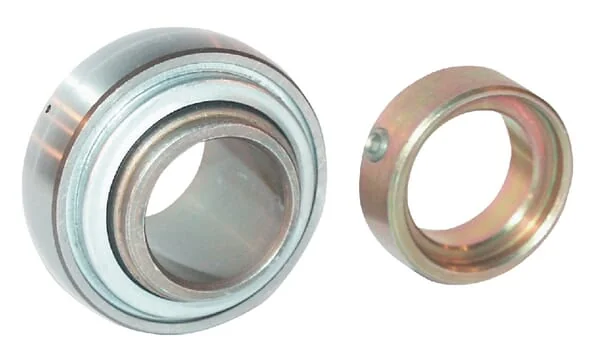

    INA FAG - GE50KLLB - Bearing Insert 50x90x22mm INA FAG

    INA FAG

    €62.62

  • INA FAG

    INA FAG - GE50LOINA - Radial Spherical Plain Bearing 50x75x50/28mm, INA FAG

    INA FAG

    €74.64

  • INA FAG

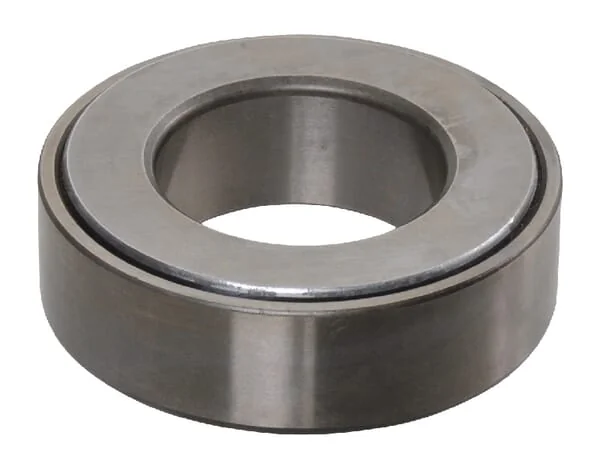

    INA FAG - GE50SWAINA - Radial Spherical Plain Bearing 50x80x20/19mm, INA FAG

    INA FAG

    €87.20

  • INA FAG

    INA FAG - GE50UK2RSAINA - Radial Spherical Plain Bearing 50x75x35/28mm, INA FAG

    INA FAG

    €79.12

  • INA FAG

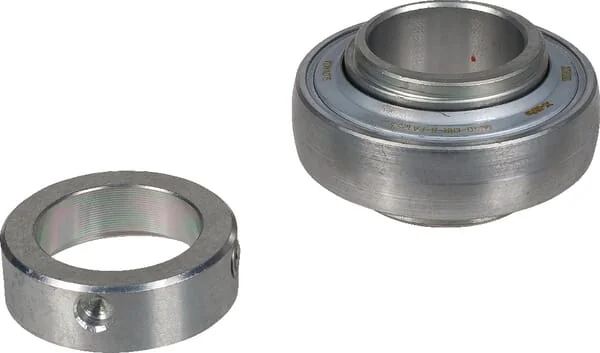

    INA FAG - GE50XLKRRBFA1255 - Radial Insert Ball Bearing
