INA FAG - GF20DOA - Hydraulic Rod End
INA FAG - GF20DOA - Hydraulic Rod End

In stock - ready to ship

Order now for delivery between 14 July and 17 July
Free shipping on orders over €60

Pay Securely with

INA FAG - GF20DOA - Hydraulic Rod End

INA FAG - GF20DOA - Hydraulic Rod End

€41.60

(Excl. VAT)

Price

(Excl. VAT)

€41.60

Product Description

The INA GF20-DO-A is a genuine INA hydraulic rod end bearing, designed for robust performance in various machinery applications. Featuring an M20x1.5 right-hand female thread and a 20mm bore diameter, this rod end has an overall length of 84mm and weighs 0.28 kg. It offers a dynamic load rating of 26.5 kN and a static load rating of 39 kN, ensuring reliable operation and durability.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
ina-fag
Part Numbers
gf20doa
Bore Diameter (mm)
20
Thread Size
M20x1.5
Overall Length (mm)
84
Width Inner Ring (mm)
20
Width Outer Ring (mm)
16
Head Height (mm)
28
Distance Bore To Shank End (mm)
60
Outer Diameter Inner Ring (mm)
40
Dynamic Load Rating (kN)
26.5
Static Load Rating (kN)
39
Weight (kg)
0.28
Quality
OEM Supplier
Manufacturer
ina-fag

Similar items you might like

  • INA FAG

    INA FAG - GF45DOA - Hydraulic Rod End

    INA FAG

    €106.88

  • INA FAG

    INA FAG - GGASE04EN - Bearing Block

    INA FAG

    €11.48

  • INA FAG

    INA FAG - GF35DOA - Hydraulic Rod End

    INA FAG

    €75.25

  • INA FAG

    INA FAG - GGCJ12NINA - Bearing Housing

    INA FAG

    €38.91

  • INA FAG

    INA FAG - GGCJT07NFA1251 - Flanged Bearing Housing

    INA FAG

    €31.04

  • INA FAG

    INA FAG - GGCJ08NFA1251 - Flanged Bearing Housing

    INA FAG

    €26.24

  • INA FAG

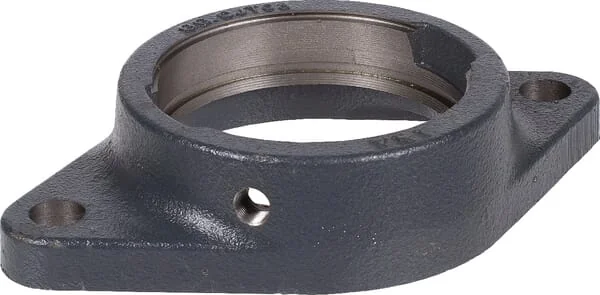

    INA FAG - GGCJT08N - Bearing Housing for Type Pcjt/Rcjt

    INA FAG

    €18.63

  • INA FAG

    INA FAG - GGLCTE06E - Bearing Housing FLCTE30 for SA2 Bearing

    INA FAG

    €14.28

  • INA FAG

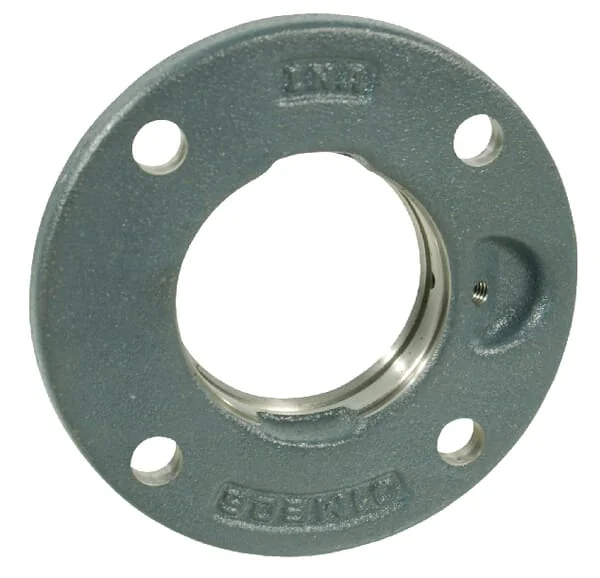

    INA FAG - GGME08INA - Bearing Housing for Type Pme/Rme 40
