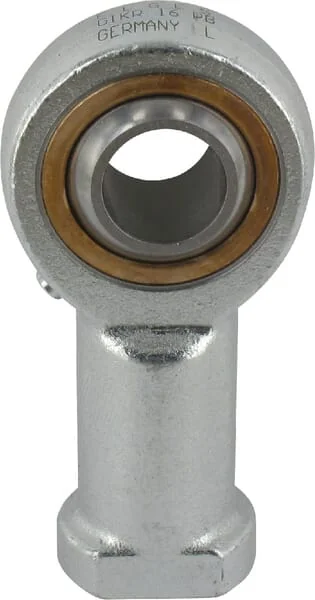

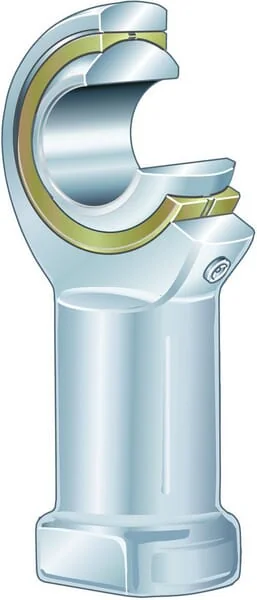

INA FAG - GIKR16PBINA - Rod Head

OEM Supplier

SKU: ina-fag-gikr16pbina

INA FAG - GIKR16PBINA - Rod Head

€54.10

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€54.10

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Type
Female thread
Unit
Each
Length
85 mm
Thread
M16 mm
Weight
0.246 kg
d2Width
42 mm
d3Thread
M16
Length L5
8 mm
Diameter D4
22 mm
Thread type
Right Hand
l7Length L7
23 mm
Height house
15 mm
Thread length
28 mm
Inner diameter
16.00 mm
Inside diameter
16 mm
Outside diameter
42.00 mm
Thread direction
Right
Height inner ring
21 mm
Surface treatment
Zinc-plated
Connection diameter
28 mm
Outside diameter ball
28.58 mm
Outside diameter basis
22 mm
Outside diameter bearing
32 mm
Basic load ratings dyn. C
21400 N
Outside diameter innerring
19.3 mm
Basic load ratings Stat. Co
45300 N
Distance basis center shaft
64 mm
Suitable for original number
GIKR16-PB
EAN
4012802526066
Manufacturer
INA/FAG
