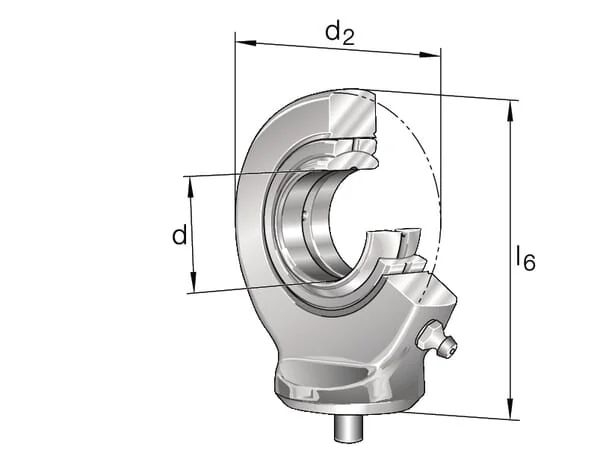

INA FAG - GK30DOINA - Rod End

OEM Supplier

SKU: ina-fag-gk30doina

INA FAG - GK30DOINA - Rod End

€45.45

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€45.45

The INA-FAG GK30DOINA is a high-quality, maintenance-free rod end bearing designed for demanding industrial and agricultural machinery. This genuine INA-FAG component features a 30 mm bore diameter and is engineered for reliable performance in various applications requiring precise articulation and robust load support. Its durable construction ensures long service life and consistent operation.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
gk30doina
OEM Part Numbers
Unit
Each
Width
87.50 mm
Weight
0.635 kg
Edge angle
7 °
BHole length
22 mm
Inner diameter
30.00 mm
L6Total height
87,5 mm
d2Total length
87,5 mm
dHole diameter
30 mm
Outside diameter
73.00 mm
d6Shaft diameter
40 mm
Height inner ring
22 mm
Head outside diameter
73 mm
d7Center pin diameter
4 mm
Outside diameter bearing
47 mm
Shaft to center distance
37 mm
C1Head width (hole length)
19 mm
Basic load ratings dyn. Cr
62.300 kN
Distance basis center shaft
51 mm
Basic load ratings Stat. Cor
95.700 kN
d1Outside diameter of inner ring
34,2 mm
h2Hole centre to bottom distance
51 mm
EAN
4012802527230
Manufacturer
INA/FAG
