Home
Maintenance & Wear Parts
Bearings
Other Bearings

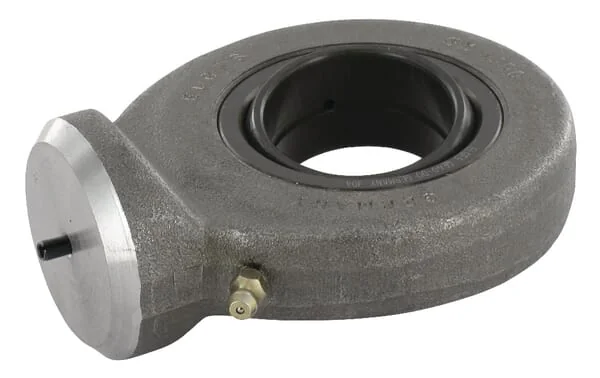

INA FAG - GK60DOINA - Ball End
INA FAG - GK60DOINA - Ball End
INA FAG - GK60DOINA - Ball End
INA FAG - GK60DOINA - Ball End
INA FAG - GK60DOINA - Ball End
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - GK60DOINA - Ball End

INA FAG - GK60DOINA - Ball End

€160.58

(Excl. VAT)

Price

(Excl. VAT)

€160.58

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Width
167.50 mm
Weight
4.3 kg
Edge angle
6 °
BHole length
44 mm
Inner diameter
60.00 mm

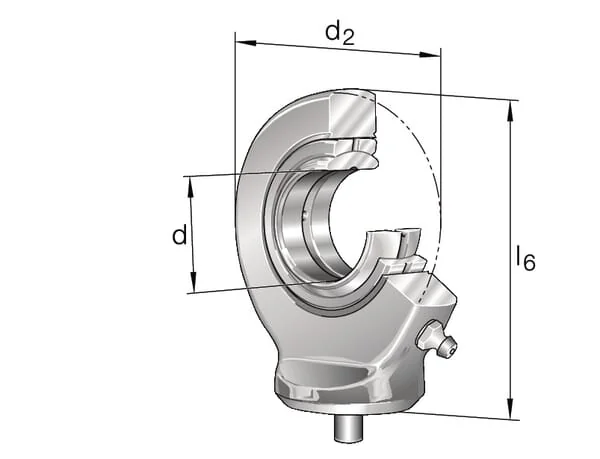

L6Total height
167,5 mm
d2Total length
167,5 mm
dHole diameter
60 mm
Outside diameter
135.00 mm
d6Shaft diameter
70 mm
Height inner ring
44 mm
Head outside diameter
135 mm
d7Center pin diameter
6 mm
Outside diameter bearing
90 mm
Shaft to center distance
75 mm
C1Head width (hole length)
38 mm
Basic load ratings dyn. Cr
245.000 kN
Distance basis center shaft
100 mm
Basic load ratings Stat. Cor
389.000 kN
d1Outside diameter of inner ring
66,8 mm
h2Hole centre to bottom distance
100 mm
Manufacturer
INA/FAG
