INA FAG - H213 - Draw Bush with Nut Diameter 60

OEM Supplier

SKU: ina-fag-h213

INA FAG - H213 - Draw Bush with Nut Diameter 60

€29.24

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€29.24

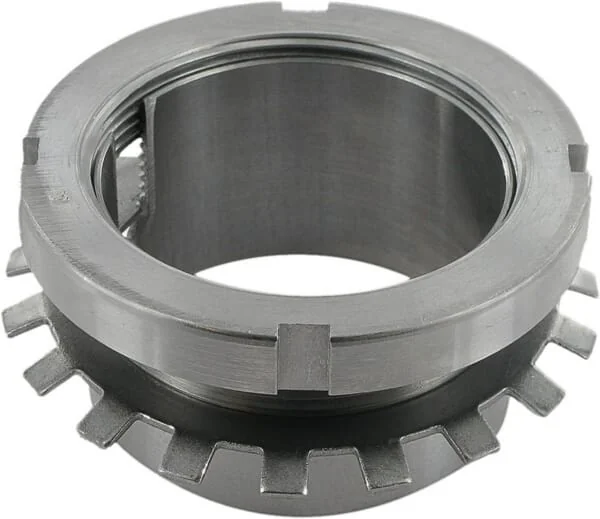

Genuine FAG H213 withdrawal sleeve, also known as a draw bush, designed for secure mounting of bearings onto cylindrical shafts. This sleeve features a 60mm inner diameter, an M65x2 thread, and comes complete with a nut. With an outer diameter of 65mm and a total width of 45mm, including a 10mm nut height, it ensures precise and reliable bearing installation in various industrial and machinery applications. Weighing 0.44 kg, it provides robust support.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
h213
OEM Part Numbers

Skf

Unit
Each
Properties
Conical 1:12 Simple to mount No additional securing on the shaft required.
Consists of
Split-section sleeve KM self locking nut MB circlip
Thread pitch
2.00 mm
B1Width/length
40 mm
Thread diameter
65 mm
Application range
Bearing with conical bore Mechanical engineering Industrial applications
d1Inside diameter
60 mm
d2Outside diameter
85 mm
B2Nut adjustment distance
14 mm
EAN
4012801216524
Manufacturer
INA/FAG
