INA FAG - H313 - Drawer

OEM Supplier

SKU: ina-fag-h313

INA FAG - H313 - Drawer

€30.17

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€30.17

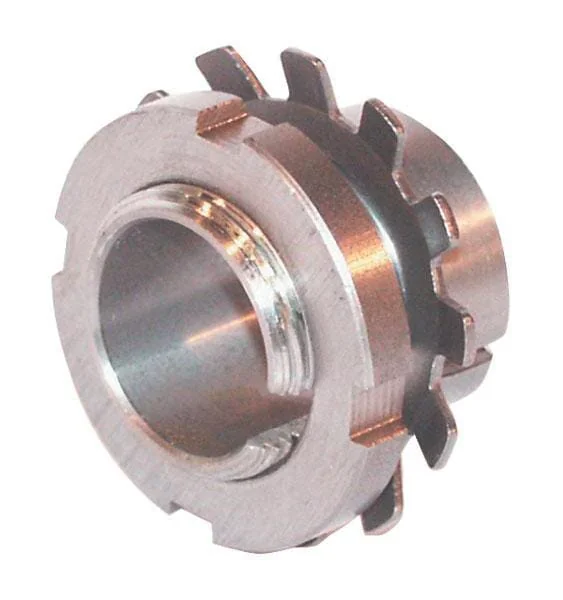

The FAG H313 adapter sleeve is a high-quality component manufactured by FAG (part of the Schaeffler Group), designed for the precise and secure mounting of bearings with a tapered bore onto cylindrical shafts. This adapter sleeve facilitates easy installation and removal, ensuring reliable performance in various industrial applications. It is commonly used with spherical roller bearings and self-aligning ball bearings, providing a robust connection and optimal bearing support. The H313 sleeve is specified for a 60 mm shaft diameter and requires a KM13 locknut and MB13 lockwasher for complete assembly.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
h313
OEM Part Numbers

Skf

Ntn

Koyo

Timken

Unit
Each
Properties
Conical 1:12 Simple to mount No additional securing on the shaft required.
Consists of
Split-section sleeve KM self locking nut MB circlip
Thread pitch
2.00 mm
B1Width/length
50 mm
Thread diameter
65 mm
Application range
Bearing with conical bore Mechanical engineering Industrial applications
d1Inside diameter
60 mm
d2Outside diameter
85 mm
B2Nut adjustment distance
14 mm
EAN
4012801217088
Manufacturer
INA/FAG
