INA FAG - HK5025 - Needle Bushing

OEM Supplier

SKU: ina-fag-hk5025

INA FAG - HK5025 - Needle Bushing

€18.38€15.71 (Excl. VAT)

RRP:€20.67
Save €2.29

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.38

Brand
Part Numbers
hk5025
Pros
Compact construction type
Unit
Each

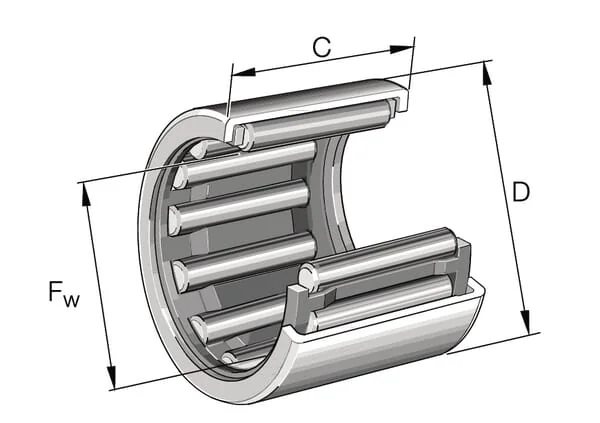

CWidth
25 mm
Sealing
Open
Regreasable
No
DOutside diameter
58 mm
FwInside diameter
50 mm
Max rotation speed
5300 r/min
Ref rotation speed
4000 r/min
Max working temperature
140 °C
Min working temperature
-30 °C
Basic radial load static
84000 N
Basic radial load dynamic
38500 N
EAN
4012801006323
Manufacturer

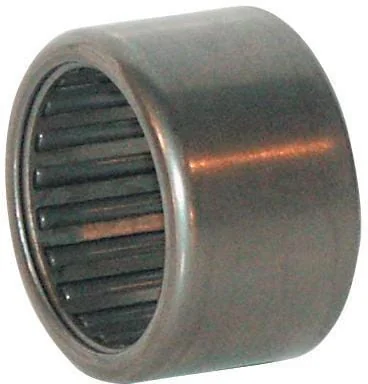

The INA HK5025 is a high-quality drawn cup needle roller bearing, also known as a needle bushing, manufactured by INA (a Schaeffler brand). This robust bearing is engineered for applications requiring high load capacity within a compact radial envelope. It features an inner diameter of 50 mm, an outer diameter of 58 mm, and a width of 25 mm. With a dynamic load rating of 29500 N and a static load rating of 51000 N, it provides reliable performance in various industrial and agricultural machinery, supporting efficient power transmission and rotational movement.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement. Shop more than 17,981 genuine INA FAG spare parts.
