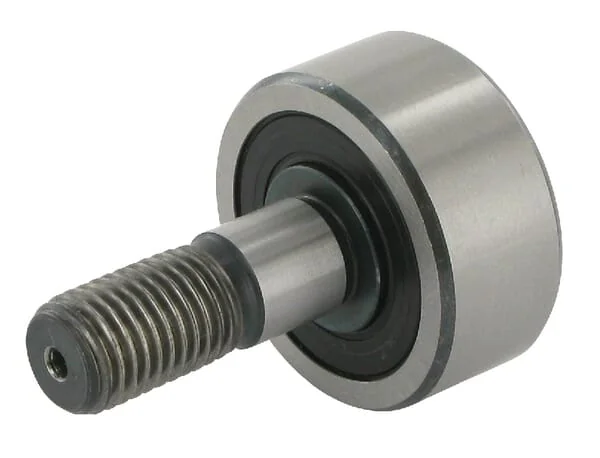

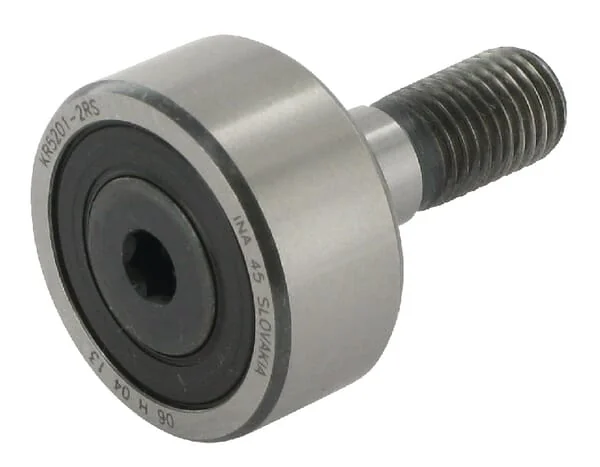

INA FAG - KR52012RS - Stud Type Track Roller
OEM Supplier
SKU: ina-fag-kr52012rs




€78.19
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping
Pay Securely with

INA FAG - KR52012RS - Stud Type Track Roller
€78.19
(Excl. VAT)
Price
(Excl. VAT)
€78.19
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Unit
Each
Width
15,9 mm
Weight
0,12 kg
Sealing
2RS
Benefits
Maintenance-free Can absorb high radial loads No forces on edges with uneven standing
Properties
Two-row layout Polyamide housing No subsequent lubrication possible
Rows number
2
Shaft length
32,5 mm
BTotal length
49,2 mm
Inside diameter
12 mm
Outer ring width
15,9 mm
d1Shaft diameter
17,1 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
35 mm
Bearing model type
Stud type track rollers
Mounting thread pitch
1.50 mm
Mounting thread length
17 mm
Max working temperature
120 °C
Min working temperature
-20 °C
Mounting thread diameter
M12
Basic radial load dynamic
8600 N
EAN
4012802786842
Manufacturer
INA/FAG
