INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface
INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface
INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface
INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface
INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface

INA FAG - LR5203X2Z - Roller 2 Row Flat Running Surface

€53.44

(Excl. VAT)

Price

(Excl. VAT)

€53.44

Product Description

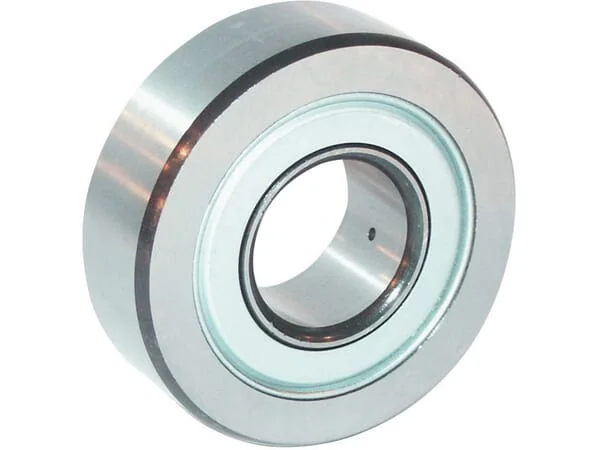

The INA-FAG LR5203X2Z is a genuine 2-row track roller featuring a flat outer ring running surface, designed for applications requiring precise linear guidance. This shielded (2Z) track roller has an inner diameter of 17 mm, an outer diameter of 40 mm, and a width of 17.5 mm, offering robust performance and protection against contaminants. It is based on angular contact ball bearing technology for high load capacity and rigidity.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
17 mm
Weight
0,17 kg
Sealing
ZZ
Benefits
Maintenance-free Can absorb high radial loads
Properties
Two-row layout Polyamide housing Running surface is cylindrical
Regreasable
No
Rows number
2
Outer ring shape
Cylindrical
dInside diameter
17 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
47 mm
Bearing model type
Track rollers
Max working temperature
120 °C
Min working temperature
-20 °C
Basic radial load static
10100 N
Basic radial load dynamic
13700 N
Manufacturer
INA/FAG
