INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing

INA FAG - NJ203ETVP2C3 - Cylindrical Roller Bearing

€29.96

(Excl. VAT)

Price

(Excl. VAT)

€29.96

Product Description

The INA-FAG NJ203-E-TVP2-C3 is a high-quality single row cylindrical roller bearing designed for robust performance. It features a removable outer ring, allowing for easier mounting and dismounting. This bearing has a bore diameter of 17 mm, an outer diameter of 47 mm, and a width of 14 mm. The 'E' designation indicates an optimized internal design for higher load capacity, 'TVP2' refers to a solid window-type cage made of glass fiber reinforced polyamide 66, and 'C3' denotes a radial internal clearance greater than normal, suitable for applications with higher operating temperatures or interference fits. This durable bearing is engineered for various industrial and agricultural machinery applications requiring reliable radial load support.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
nj203etvp2c3
Unit
Each
BWidth
12 mm
Weight
0,072 kg
Sealing
Open
Benefits
Correct operating play at high temperature or press fit
Properties
Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Consists of
Cylindrical bearing Inner ring NJ

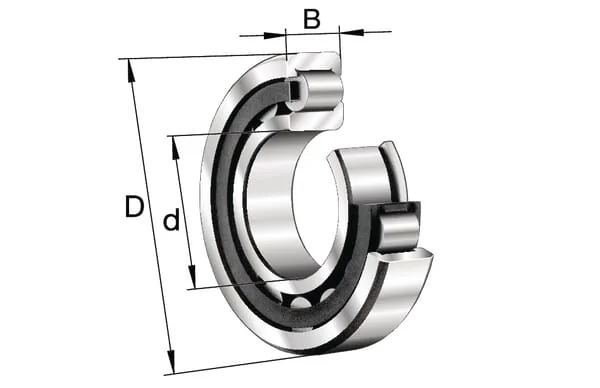

dInside diameter
17 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
40 mm
Bearing model type
Deep groove ball bearings
Ref rotation speed
15400 r/min
Basic radial load static
14600 N
Basic radial load dynamic
20800 N
EAN
4012801572347
Manufacturer
INA/FAG
