Maintenance & Wear Parts

Needle Bearings

INA FAG - NK4520 - Needle Bearing Solid NK

INA FAG - NK4520 - Needle Bearing Solid NK

INA FAG - NK4520 - Needle Bearing Solid NK

INA FAG - NK4520 - Needle Bearing Solid NK

Number of products

In stock - ready to ship

Order now for delivery between 9 May and 13 May

Free shipping on orders over €60

Pay Securely with

INA FAG - NK4520 - Needle Bearing Solid NK

INA FAG - NK4520 - Needle Bearing Solid NK

€27.59

(Excl. VAT)

Price

(Excl. VAT)

€27.59

Number of products

Product Description

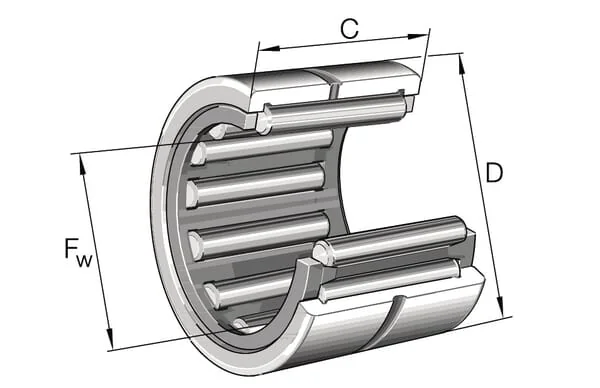

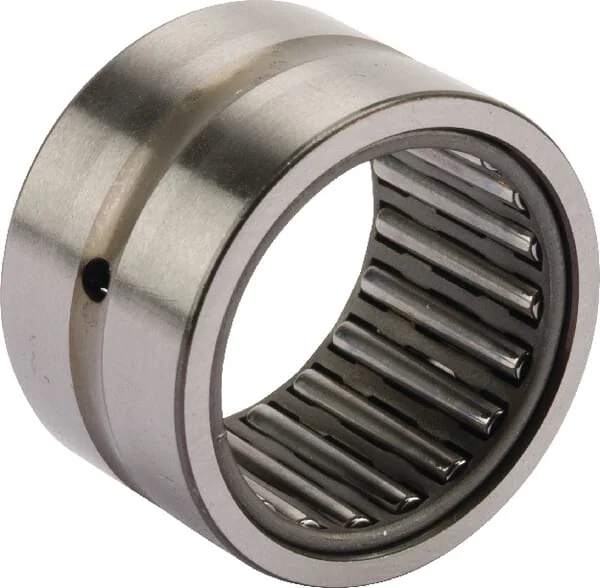

The INA NK4520 is a high-quality needle roller bearing manufactured by Schaeffler, designed without an inner ring. This robust bearing features a 45mm bore diameter, 58mm outer diameter, and 20mm width, making it suitable for applications where the shaft can serve as a raceway. It offers a basic dynamic load rating of 28 kN and a basic static load rating of 38 kN, with a limiting speed of 8500 rpm. Its compact design provides high load carrying capacity and rigidity, ensuring reliable performance in various industrial applications.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand

Pros

Compact construction type

Unit

Each

CWidth

20 mm

Sealing

Open

Regreasable

Yes

DOutside diameter

55 mm

FwInside diameter

45 mm

Max rotation speed

10200 r/min

Ref rotation speed

5900 r/min

Max working temperature

120 °C

Min working temperature

-20 °C

Basic radial load static

62000 N

Basic radial load dynamic

35000 N

Manufacturer

INA/FAG

Similar items you might like

INA FAG - NK4020 - Needle Bearing Solid NK
INA FAG
€22.59
INA FAG - NK4520TV - Needle Bearing Without Inner Ring
INA FAG
€22.45
INA FAG - NK3530TVXL - Needle Bearing without Inner Ring
INA FAG
€23.91
INA FAG - NK4520TVXL - Needle Bearing Without Inner Ring
INA FAG
€22.45
INA FAG - NK3720XL - Needle Bearing without Inner Ring
INA FAG
€20.33
INA FAG - NK4530TVXL - Needle Bearing Without Inner Ring
INA FAG
€17.45
INA FAG - NK4530TV - Needle Bearing Without Inner Ring
INA FAG
€28.24
INA FAG - NK5025TVXL - Needle Bearing Without Inner Ring
INA FAG
€18.41
INA FAG - NK4320XL - Needle Bearing without Inner Ring
INA FAG
€15.41
INA FAG - NK4730XL - Needle Bearing Without Inner Ring
INA FAG
€18.31

Reviews

Customer Reviews

Be the first to write a review!

Product Description

The INA NK4520 is a high-quality needle roller bearing manufactured by Schaeffler, designed without an inner ring. This robust bearing features a 45mm bore diameter, 58mm outer diameter, and 20mm width, making it suitable for applications where the shaft can serve as a raceway. It offers a basic dynamic load rating of 28 kN and a basic static load rating of 38 kN, with a limiting speed of 8500 rpm. Its compact design provides high load carrying capacity and rigidity, ensuring reliable performance in various industrial applications.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand

Pros

Compact construction type

Unit

Each

CWidth

20 mm

Sealing

Open

Regreasable

Yes

DOutside diameter

55 mm

FwInside diameter

45 mm

Max rotation speed

10200 r/min

Ref rotation speed

5900 r/min

Max working temperature

120 °C

Min working temperature

-20 °C

Basic radial load static

62000 N

Basic radial load dynamic

35000 N

Manufacturer

INA/FAG
