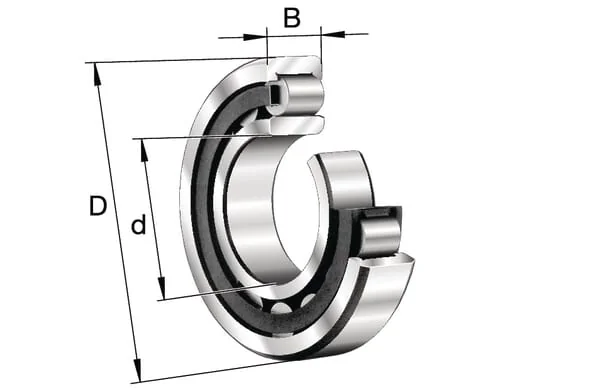

INA FAG - NU213ETVP2 - Cylindrical Roller Bearing Type NU

OEM Supplier

SKU: ina-fag-nu213etvp2

INA FAG - NU213ETVP2 - Cylindrical Roller Bearing Type NU

€103.26

(excl. VAT)

In stock - ready to ship

Ships within 59 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€103.26

The INA-FAG NU213ETVP2 is a high-quality cylindrical roller bearing designed for robust industrial applications. This single-row bearing features a separable design, with the inner ring having two integral flanges and the outer ring being flangeless, allowing for axial displacement of the shaft relative to the housing. It is equipped with an E-type enhanced capacity design and a TVP2 polyamide cage, which offers good sliding properties and is lightweight. This bearing is suitable for applications requiring high radial load capacity and high speeds.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
nu213etvp2
Equivalent OEM Part Numbers
[Object Object], [Object Object], [Object Object], [Object Object], [Object Object], [Object Object]
Unit
Each
BWidth
23 mm
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring without rib Axial displacement of shaft with regard to housing in 2 directions
Consists of
Cylindrical bearing Inner ring NU
dInside diameter
65 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
120 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
8100 r/min
Ref rotation speed
6000 r/min
Basic radial load static
119000 N
Basic radial load dynamic
127000 N
EAN
4012801179386
Manufacturer
INA/FAG
