INA FAG - NU2211ETVP2 - Roller Bearing
INA FAG - NU2211ETVP2 - Roller Bearing
INA FAG - NU2211ETVP2 - Roller Bearing
INA FAG - NU2211ETVP2 - Roller Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - NU2211ETVP2 - Roller Bearing

INA FAG - NU2211ETVP2 - Roller Bearing

€77.50

(Excl. VAT)

Price

(Excl. VAT)

€77.50

Product Description

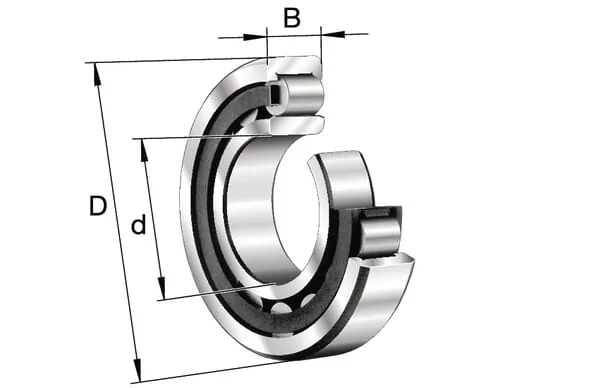

The INA-FAG NU2211ETVP2 is a high-quality single row cylindrical roller bearing designed for robust performance. It features a solid outer ring, a solid inner ring, and a cylindrical roller and cage assembly. The 'NU' designation indicates that the bearing has two integral flanges on the outer ring and no flanges on the inner ring, allowing for axial displacement of the shaft relative to the housing. The 'E' signifies an increased capacity design, and 'TVP2' denotes a solid window-type cage made from glass fibre reinforced polyamide 66, known for its low weight and good sliding properties. This bearing has a 55 mm bore diameter, a 100 mm outer diameter, and a 25 mm width, making it suitable for applications requiring high radial load capacity and moderate speeds.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
25 mm
Weight
0,744 kg
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring without rib Axial displacement of shaft with regard to housing in 2 directions
Consists of
Cylindrical bearing Inner ring NU
dInside diameter
55 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
100 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
10000 r/min
Ref rotation speed
7000 r/min
Basic radial load static
118000 N
Basic radial load dynamic
117000 N
Manufacturer
INA/FAG
