INA FAG - NU313ETVP2 - Cylindrical Roller Bearing

OEM Supplier

SKU: ina-fag-nu313etvp2

INA FAG - NU313ETVP2 - Cylindrical Roller Bearing

€132.46

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€132.46

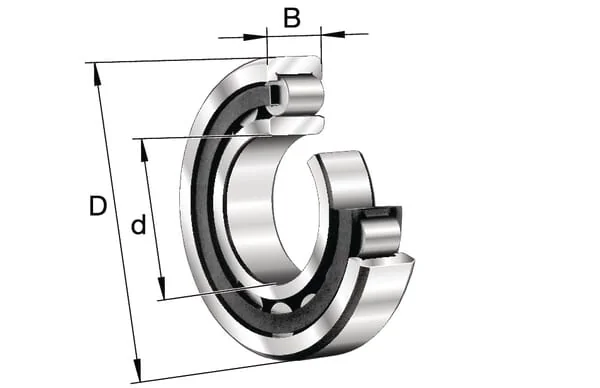

Genuine INA-FAG NU313-E-TVP2 cylindrical roller bearing, designed for high radial loads. This single row bearing features an increased capacity (E) and a glass fibre reinforced polyamide cage (TVP2). With a bore diameter of 65 mm, an outer diameter of 140 mm, and a width of 33 mm, it offers robust performance in industrial applications. The bearing has a dynamic load rating of 153 kN and a static load rating of 153 kN, suitable for operating temperatures from -30 to +120 °C.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
nu313etvp2
Unit
Each
BWidth
33 mm
Weight
0,022 kg
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring without rib Axial displacement of shaft with regard to housing in 2 directions
Consists of
Cylindrical bearing Inner ring NU
dInside diameter
65 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
140 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
6800 r/min
Ref rotation speed
4800 r/min
Basic radial load static
191000 N
Basic radial load dynamic
214000 N
EAN
4012801235204
Manufacturer
INA/FAG
