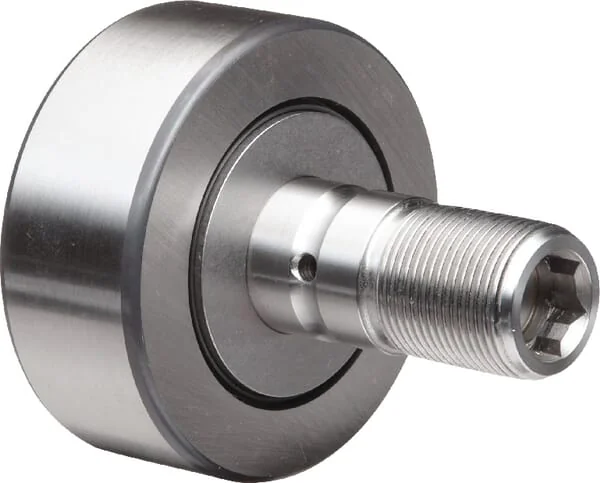

INA FAG - NUKR72A - Stud Type Track Roller

OEM Supplier

SKU: ina-fag-nukr72a

INA FAG - NUKR72A - Stud Type Track Roller

€152.92

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€152.92

The INA-FAG NUKR72-A is a high-quality stud type track roller designed to accommodate high radial loads and axial loads arising from slight misalignment or skewed running. This genuine INA-FAG component features a 72 mm outer diameter and a 30 mm width, making it suitable for various industrial and agricultural machinery applications requiring reliable guidance and support. Its robust design ensures durability and efficient performance in demanding operational environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
nukr72a
OEM Part Numbers

Fag

Ina

Unit
Each
CWidth
28 mm
Weight
0,986 kg
Sealing
ZZ
Benefits
Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs Roller bearing is fully rolling NMT add-on: equipped with a nut
Regreasable
Yes
Rows number
2
BTotal length
80 mm
B2Shaft length
49,5 mm
Inside diameter
24 mm
Outer ring width
28 mm
d1Shaft diameter
24 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
72 mm
Bearing model type
Track rollers
Mounting thread pitch
1.50 mm
Max working temperature
140 °C
Min working temperature
-30 °C
Basic radial load static
65000 N
IGMounting thread length
25 mm
Basic radial load dynamic
45500 N
GMounting thread diameter
M24
EAN
4012802418033
Manufacturer
INA/FAG
