INA FAG - NUP215ETVP2 - Cylindrical Roller Bearing

OEM Supplier

SKU: ina-fag-nup215etvp2

INA FAG - NUP215ETVP2 - Cylindrical Roller Bearing

€159.86

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€159.86

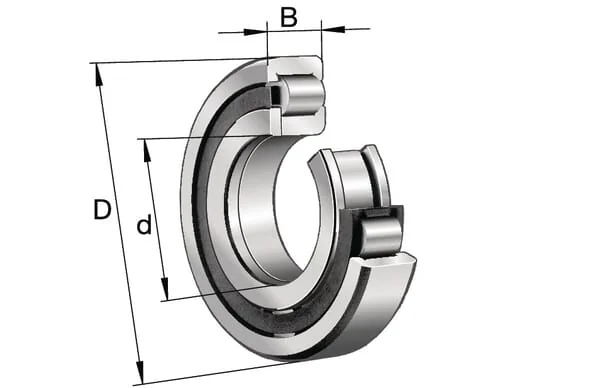

The INA-FAG NUP215-E-TVP2 is a high-quality cylindrical roller bearing designed for demanding industrial applications. Featuring a single row of rollers and a polyamide cage (TVP2), this bearing offers excellent performance under high radial loads and allows for high operating speeds. It has a bore diameter of 75 mm, an outer diameter of 135 mm, and a width of 28 mm, making it suitable for a wide range of machinery where robust and reliable bearing solutions are required. The 'E' suffix indicates an optimized internal design for increased load capacity.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
nup215etvp2
Unit
Each
BWidth
25 mm
Weight
0,133 kg
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring with 1 fixed and 1 loose rib Fixed bearing, to lock shaft axially in 2 directions
Consists of
Cylindrical bearing Inner ring NUP
dInside diameter
75 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
130 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
7500 r/min
Ref rotation speed
5300 r/min
Basic radial load static
157000 N
Basic radial load dynamic
154000 N
EAN
4012801236201
Manufacturer
INA/FAG
