INA FAG - NUP307ETVP2 - Ball Bearing

OEM Supplier

SKU: ina-fag-nup307etvp2

INA FAG - NUP307ETVP2 - Ball Bearing

€54.91

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€54.91

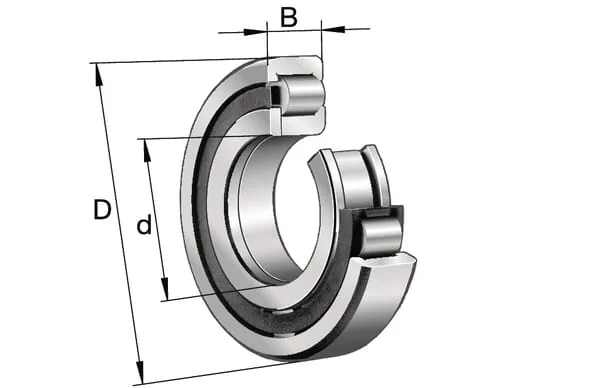

The INA NUP307ETVP2 is a genuine INA-FAG cylindrical roller bearing, designed for high radial load capacity and rigidity in various industrial machinery. This single-row bearing features a 35mm bore diameter, an 80mm outer diameter, and a 21mm width. It is equipped with a polyamide cage (ETVP2 suffix) for reliable performance and reduced friction. The NUP type design includes two integral flanges on the outer ring and one integral flange on the inner ring, along with a loose flange ring, allowing for axial displacement in one direction.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
nup307etvp2
Unit
Each
BWidth
21 mm
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring with 1 fixed and 1 loose rib Fixed bearing, to lock shaft axially in 2 directions
Consists of
Cylindrical bearing Inner ring NUP
dInside diameter
35 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
80 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
12600 r/min
Ref rotation speed
9000 r/min
Basic radial load static
63000 N
Basic radial load dynamic
76000 N
EAN
4012801021821
Manufacturer
INA/FAG
