INA FAG - PCFT40 - Housing Unit PCFT
INA FAG - PCFT40 - Housing Unit PCFT
INA FAG - PCFT40 - Housing Unit PCFT
INA FAG - PCFT40 - Housing Unit PCFT
INA FAG - PCFT40 - Housing Unit PCFT

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - PCFT40 - Housing Unit PCFT

INA FAG - PCFT40 - Housing Unit PCFT

€52.61

(Excl. VAT)

Price

(Excl. VAT)

€52.61

Product Description

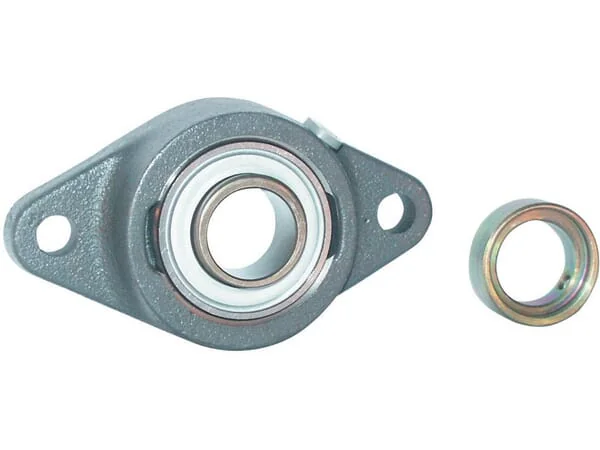

This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Pros
Small installation space self-aligning
Unit
Each
Weight
1,45 kg
Benefits
Low space requirement
Includes
Bearing block Tightening washer
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Oval flange
Total length
105 mm
Housing width
172 mm
UTotal height
51 mm
THousing height
28,8 mm
Basic radial load static
19800 N
KMounting holes diameter
14 mm
MMounting holes distance
143,5 mm
dBearing inside diameter
40 mm
Basic radial load dynamic
32500 N
L*Bearing inner ring width
43,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
PBearing balls distance to mounting surface
18,3 mm
EAN
4012802791327
Manufacturer
INA/FAG
