Maintenance & Wear Parts

Bearing Housings

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

Number of products

In stock - ready to ship

Order now for delivery between 21 May and 25 May

Free shipping on orders over €60

Pay Securely with

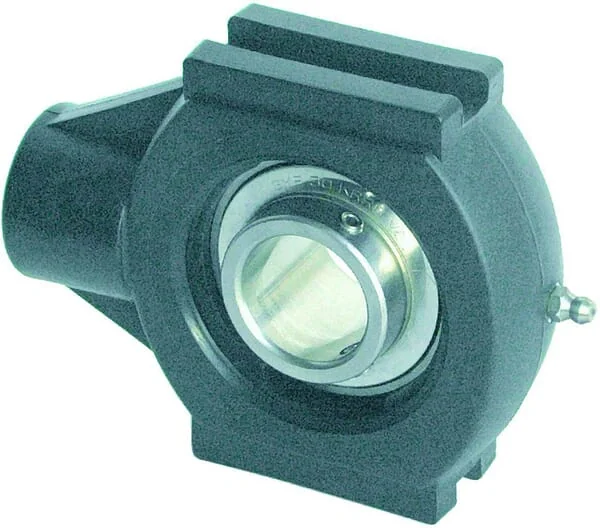

INA FAG - PHE20TVFA1255 - Bearing Insert

INA FAG - PHE20TVFA1255 - Bearing Insert

€48.72

(Excl. VAT)

Price

(Excl. VAT)

€48.72

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

0,37 kg

Properties

Plastic bearing housing Inner bearing in rust-repellent Corrotect design Inner bearing has one-sided extended inner ring with clamp ring Subsequent lubrication possible

Consists of

Bearing block Clamp ring End cap

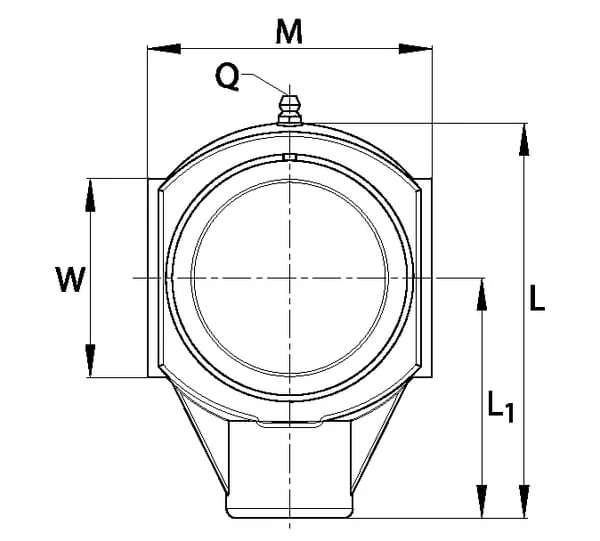

LTotal length

99 mm

MHousing width

65 mm

A2Housing height

27,5 mm

Bearing material

Stainless steel

Housing material

Plastic

Application range

Mobile mechanical engineering Stationary mechanical engineering Corrosive environments

WGuide groove length

47 mm

Mounting thread diameter

M16

dBearing inside diameter

20 mm

L1Shaft vertical distance

63,5 mm

B1Bearing inner ring width

31 mm

QGrease nipple thread diameter

M28

S1Bearing balls distance to mounting surface

23,5 mm

Manufacturer

INA/FAG

Similar items you might like

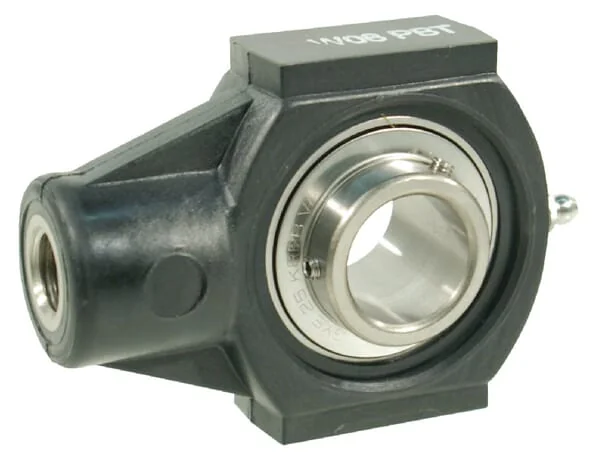

INA FAG - PHE25TVFA1255 - Bearing Insert
