INA FAG - PSHE17 - Pillow Block
INA FAG - PSHE17 - Pillow Block
INA FAG - PSHE17 - Pillow Block
INA FAG - PSHE17 - Pillow Block
INA FAG - PSHE17 - Pillow Block
INA FAG - PSHE17 - Pillow Block

In stock - ready to ship

Ships within 69 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - PSHE17 - Pillow Block

INA FAG - PSHE17 - Pillow Block

€32.21

(Excl. VAT)

Price

(Excl. VAT)

€32.21

Product Description

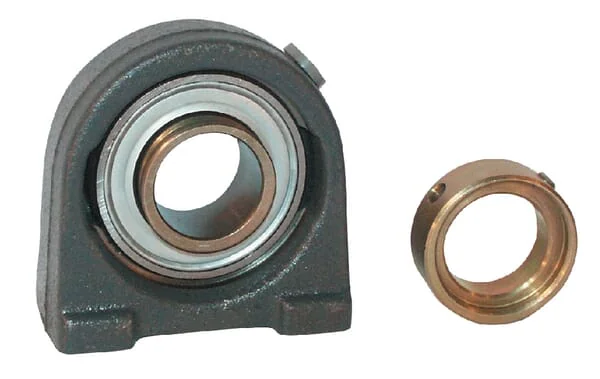

The INA PSHE17 is a robust pillow block bearing unit designed for reliable performance in various industrial machinery. It features a durable cast iron housing (PHE17) and an INA GRAE17-NPP-B radial insert ball bearing, providing a 17mm bore diameter. This unit is equipped with a relubrication facility to ensure extended service life and reduced maintenance. Ideal for applications requiring stable shaft support and easy mounting.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
pshe17
Unit
Each
Weight
0,38 kg
Benefits
Low space requirement
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
30 mm
Housing type
Pillow block - short
Total length
63 mm
HTotal height
57 mm
BHousing width
30 mm
Flange thickness
13 mm
Mounting holes distance
47 mm
AShaft vertical distance
30,2 mm
Mounting thread diameter
M8
dBearing inside diameter
17 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
28 mm
OBearing balls distance to mounting surface
22,1 mm
EAN
4012802792126
Manufacturer
INA/FAG
