INA FAG - RA50 - Bearing Housing RA
OEM Supplier
SKU: ina-fag-ra50




€61.20
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - RA50 - Bearing Housing RA
€61.20
(Excl. VAT)
Price
(Excl. VAT)
€61.20
The INA-FAG RA50 bearing housing is a high-quality component manufactured by Schaeffler, providing reliable support and protection for bearings. This robust housing ensures optimal performance and extended service life in demanding industrial environments. It is engineered for precision fit and durability, making it suitable for a wide range of machinery requiring secure bearing installation.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
ra50
Unit
Each
Weight
1,68 kg
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Consists of
2 halves of housing Clamp bearing Clamp ring
Total width
43,8 mm
Housing type
Round flange
Total height
36,7 mm
Housing width
155,5 mm
Housing height
11,1 mm
Bearing material
Steel
Flange thickness
4 mm
Housing material
Steel
Basic radial load static
23200 N
KMounting holes diameter
13,5 mm
dBearing inside diameter
50 mm
Basic radial load dynamic
37500 N
L*Bearing inner ring width
43,8 mm
Locking ring outside diameter
69 mm
Mounting holes/bolts circle diameter
127 mm
EAN
4012802792607
Manufacturer
INA/FAG
Be the first to write a review!
Similar items you might like

INA FAG - RAE20NPP - Bearing
INA FAG
€23.03

INA FAG - RAE25NPPB - Clamping Bearing RAE
INA FAG
€20.98

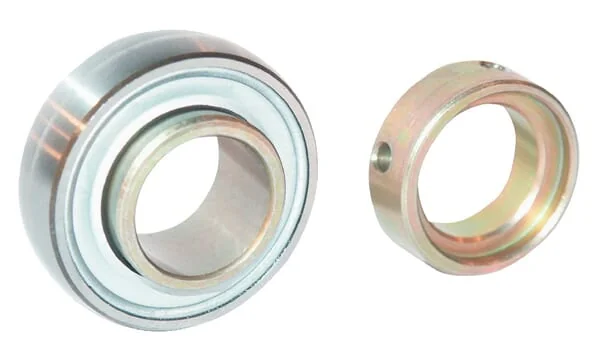

INA FAG - RAE35NPPB - Clamping Bearing RAE
INA FAG
€28.39

INA FAG - RAE30NPPB - Clamping Bearing RAE
INA FAG
€24.49

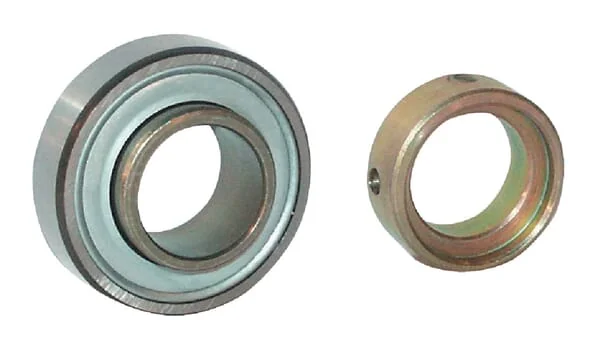

INA FAG - RAE40NPP - Inner Bearing
