INA FAG - RASE40 - Housing Unit Rase

INA FAG - RASE40 - Housing Unit Rase

INA FAG - RASE40 - Housing Unit Rase

INA FAG - RASE40 - Housing Unit Rase

INA FAG - RASE40 - Housing Unit Rase

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

INA FAG - RASE40 - Housing Unit Rase

INA FAG - RASE40 - Housing Unit Rase

€51.08

(Excl. VAT)

Price

(Excl. VAT)

€51.08

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

1,95 kg

Properties

Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated

Consists of

Bearing block Clamp ring

Housing type

Pillow block

HTotal height

99 mm

WTotal length

179 mm

BHousing width

48 mm

Technical info

Addition FA125: additional rust protection

CFlange thickness

15 mm

Mounting holes distance

138 mm

AShaft vertical distance

49,2 mm

KMounting holes diameter

12,6 mm

dBearing inside diameter

40 mm

LBearing inner ring width

56,3 mm

Grease nipple thread diameter

M6

Locking ring outside diameter

58 mm

OBearing balls distance to mounting surface

34,9 mm

Manufacturer

INA/FAG

Similar items you might like

INA FAG - RASE40NFA125 - Bearing Block Protection
INA FAG
€77.14
INA FAG - RASE45 - Housing Unit Rase
INA FAG
€65.73
INA FAG - RASE55 - Housing Unit Rase
INA FAG
€96.03
INA FAG - RASE70 - Housing Unit Rase
INA FAG
€200.17
INA FAG - RASE75 - Housing Unit Rase
INA FAG
€246.80
INA FAG - RASEY20TVVA - Plastic Bearing Cover KLV
INA FAG
€89.04
INA FAG - RASEY25 - Housing Unit Rasey
INA FAG
€28.65
INA FAG - RASEY35TVVA - Plastic Bearing Cover KLV
INA FAG
€145.00
INA FAG - RASEY40 - Housing Unit Rasey
INA FAG
€45.28
INA FAG - RASEY45 - Housing Unit Rasey
INA FAG
€51.44

Reviews

Customer Reviews

Be the first to write a review!

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

1,95 kg

Properties

Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated

Consists of

Bearing block Clamp ring

Housing type

Pillow block

HTotal height

99 mm

WTotal length

179 mm

BHousing width

48 mm

Technical info

Addition FA125: additional rust protection

CFlange thickness

15 mm

Mounting holes distance

138 mm

AShaft vertical distance

49,2 mm

KMounting holes diameter

12,6 mm

dBearing inside diameter

40 mm

LBearing inner ring width

56,3 mm

Grease nipple thread diameter

M6

Locking ring outside diameter

58 mm

OBearing balls distance to mounting surface

34,9 mm

Manufacturer

INA/FAG

Reviews

Customer Reviews

Be the first to write a review!

Similar items you might like

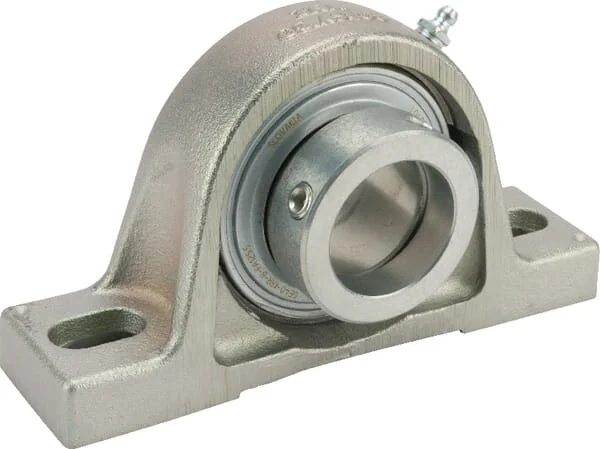

INA FAG - RASE40NFA125 - Bearing Block Protection
INA FAG
€77.14
INA FAG - RASE45 - Housing Unit Rase
INA FAG
€65.73
INA FAG - RASE55 - Housing Unit Rase
INA FAG
€96.03
INA FAG - RASE70 - Housing Unit Rase
INA FAG
€200.17

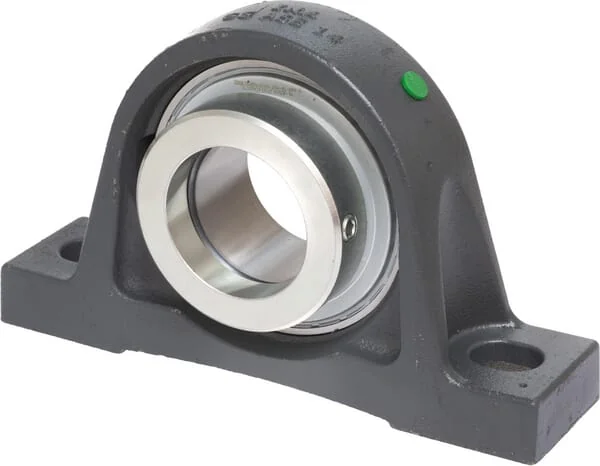

INA FAG - RASE75 - Housing Unit Rase
