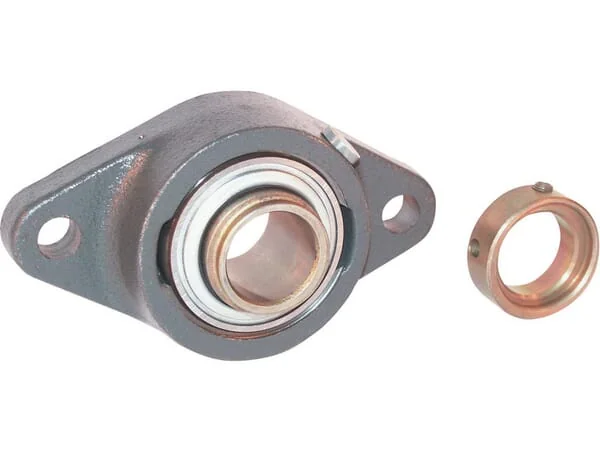

INA FAG - RCJT50N - Housing Unit RCJT

OEM Supplier

SKU: ina-fag-rcjt50n

INA FAG - RCJT50N - Housing Unit RCJT

€81.22

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€81.22

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Unit
Each
Weight
2,2 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Oval flange
Total length
190 mm
Housing width
190 mm
UTotal height
66,2 mm
Technical info
Addition FA125: additional rust protection
THousing height
39 mm
Basic radial load static
23200 N
KMounting holes diameter
18 mm
MMounting holes distance
157 mm
dBearing inside diameter
50 mm
Basic radial load dynamic
37500 N
LBearing inner ring width
62,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
Bearing balls distance to locking side end
28 mm
EAN
4054372957840
Manufacturer
INA/FAG
