INA FAG - RSHEY30N - Pillow Block Standing CPL.

OEM Supplier

SKU: ina-fag-rshey30n

INA FAG - RSHEY30N - Pillow Block Standing CPL.

€45.86

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€45.86

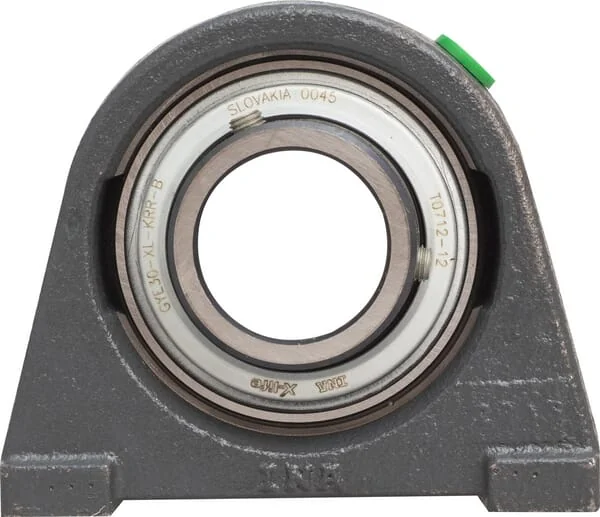

The INA-FAG RSHEY30N is a high-quality pillow block bearing unit designed for reliable performance in various agricultural and industrial machinery. This unit features a robust cast iron housing (PHEY30) and an INA-FAG YAR206-2FW/VA201 spherical outer ring bearing, ensuring durability and efficient operation. It is engineered to accommodate initial misalignment and provide smooth rotation, making it suitable for demanding environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
rshey30n
Unit
Each
Weight
0,94 kg
Benefits
Low space requirement
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Pillow block - short
Total length
98 mm
HTotal height
82 mm
AHousing width
40 mm
Flange thickness
20,5 mm
Mounting holes distance
76,2 mm
HShaft vertical distance
82 mm
Mounting thread diameter
M10
dBearing inside diameter
30 mm
BBearing inner ring width
38,1 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
22,2 mm
EAN
4054372264559
Manufacturer
INA/FAG
