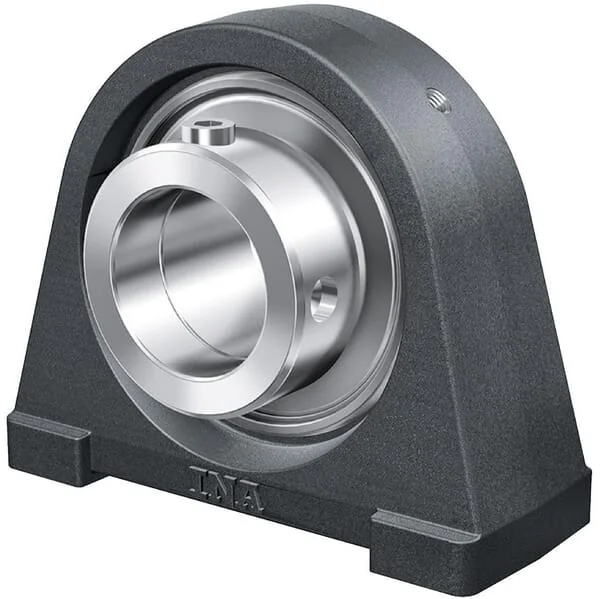

INA FAG - TSHE45 - Pillow Block

OEM Supplier

SKU: ina-fag-tshe45

INA FAG - TSHE45 - Pillow Block

€97.89

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€97.89

The INA-FAG TSHE45 is a high-quality pillow block bearing unit, engineered for reliable performance in various industrial machinery. This unit features a robust housing and a precision bearing, ensuring efficient operation and extended service life. It is designed to accommodate radial and axial loads, providing stable support for rotating shafts. Ideal for applications requiring durable and easy-to-mount bearing solutions.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
tshe45
Unit
Each
Weight
2,16 kg
Benefits
Very good protection against contamination Low space requirement
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Pillow block - short
HTotal height
107 mm
WTotal length
120 mm
BHousing width
48 mm
Flange thickness
15 mm
Bearing inside diameter
45 mm
Mounting holes distance
95,3 mm
AShaft vertical distance
54 mm
Mounting thread diameter
M12
LBearing inner ring width
56,5 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
63 mm
OBearing balls distance to mounting surface
34,9 mm
EAN
4012802794540
Manufacturer
INA/FAG
