INA FAG - UC209INA - Tension Bearing
INA FAG - UC209INA - Tension Bearing
INA FAG - UC209INA - Tension Bearing
INA FAG - UC209INA - Tension Bearing
INA FAG - UC209INA - Tension Bearing

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - UC209INA - Tension Bearing

INA FAG - UC209INA - Tension Bearing

€21.77

(Excl. VAT)

Price

(Excl. VAT)

€21.77

Product Description

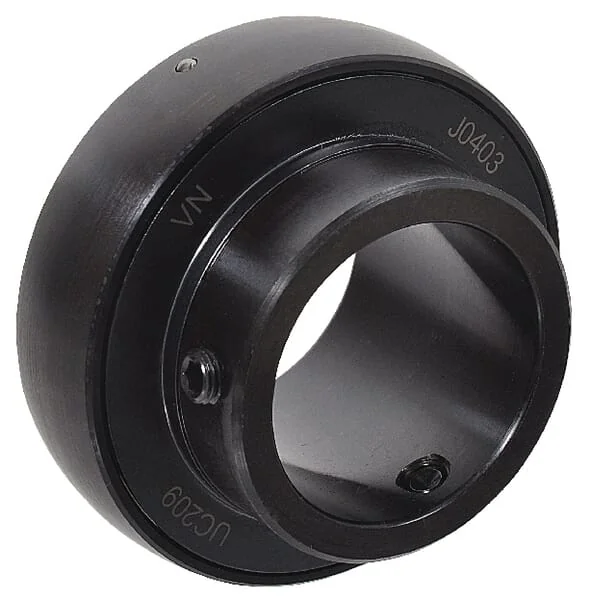

Genuine INA-FAG UC209INA insert bearing, also known as a Y-bearing, designed for various industrial and agricultural applications. This robust ball bearing features a 45mm bore diameter, an 85mm outer diameter, and an overall width of 49.2mm. With a weight of 0.77 kg, it ensures reliable performance in demanding conditions.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Part Numbers
uc209ina
Unit
Each
Properties
Both sides: extended inner ring with 2 adjusting screws RSR seal
dInside diameter
45 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BInner ring width
49,2 mm
COuter ring width
22,6 mm
DOutside diameter
85 mm
Basic radial load static
20400 N
Basic radial load dynamic
32500 N
EAN
4012802627442
Manufacturer
INA/FAG
