Maintenance & Wear Parts

Flanged Bearings

INA FAG - UCF206 - Housing Unit Ucf

INA FAG - UCF206 - Housing Unit Ucf

INA FAG - UCF206 - Housing Unit Ucf

INA FAG - UCF206 - Housing Unit Ucf

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

INA FAG - UCF206 - Housing Unit Ucf

INA FAG - UCF206 - Housing Unit Ucf

€21.94

(Excl. VAT)

Price

(Excl. VAT)

€21.94

Number of products

Product Description

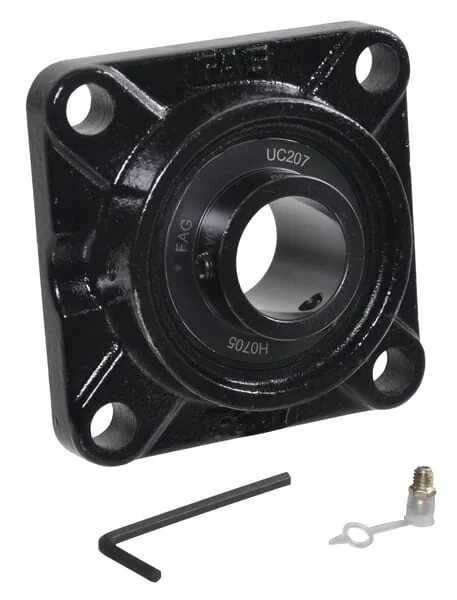

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Pros

Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated

Unit

Each

Includes

Bearing block Bearing Grease nipple

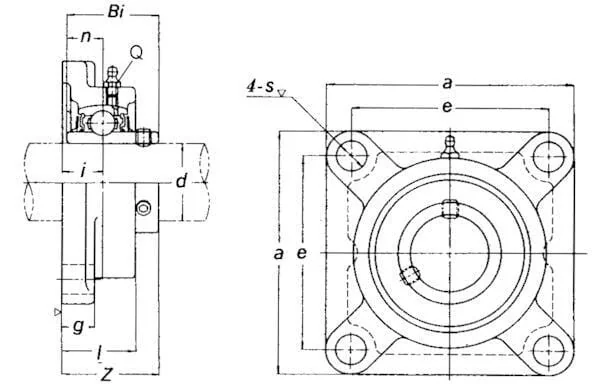

Properties

Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated

Housing type

Square flange

Total height

40,2 mm

aTotal length

108 mm

aHousing width

108 mm

lHousing height

31 mm

Mounting holes diameter

12 mm

Basic radial load static

11300 N

dBearing inside diameter

30 mm

eMounting holes distance

83 mm

Basic radial load dynamic

19500 N

BiBearing inner ring width

38,1 mm

Grease nipple thread diameter

M6

Bearing balls distance to locking side end

18 mm

lBearing balls distance to mounting surface

15,9 mm

Manufacturer

INA/FAG
