INA FAG - UCF213 - Housing Unit UCF

OEM Supplier

SKU: ina-fag-ucf213

INA FAG - UCF213 - Housing Unit UCF

€84.51

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€84.51

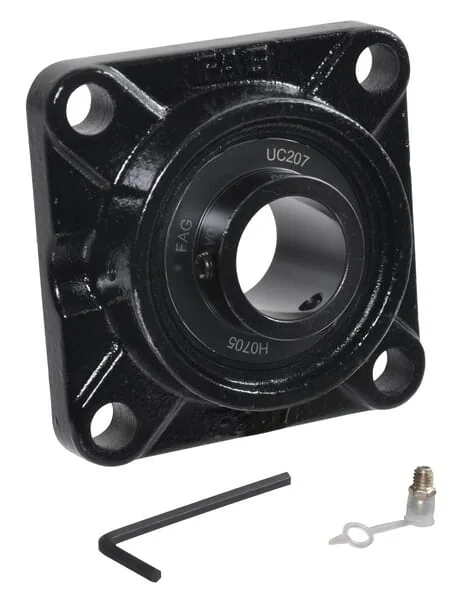

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
ucf213
Pros
Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Unit
Each
Includes
Bearing block Bearing Grease nipple
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated

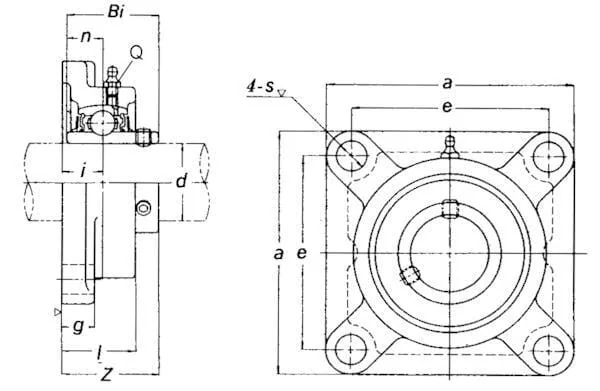

Housing type
Square flange
Total height
69,7 mm
aTotal length
187 mm
aHousing width
187 mm
lHousing height
50 mm
Mounting holes diameter
19 mm
Basic radial load static
40000 N
dBearing inside diameter
65 mm
eMounting holes distance
149 mm
Basic radial load dynamic
61000 N
BiBearing inner ring width
65,1 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
30 mm
lBearing balls distance to mounting surface
25,4 mm
EAN
4047643261388
Manufacturer
INA/FAG
