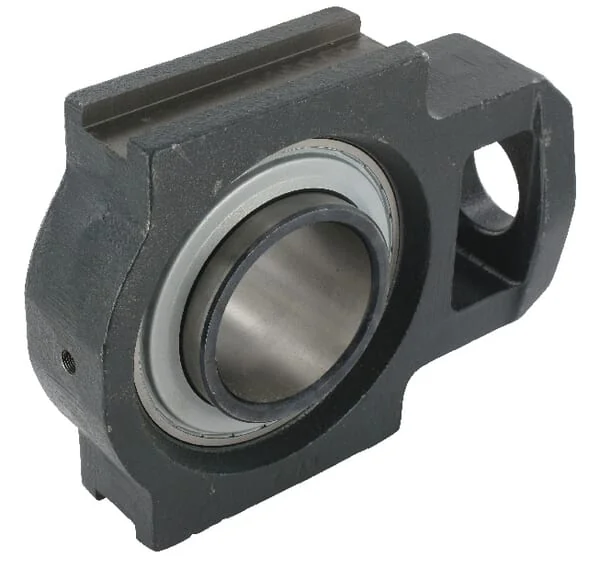

INA FAG - UCT212 - Housing Unit UCT
INA FAG - UCT212 - Housing Unit UCT
INA FAG - UCT212 - Housing Unit UCT
INA FAG - UCT212 - Housing Unit UCT
INA FAG - UCT212 - Housing Unit UCT
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - UCT212 - Housing Unit UCT

INA FAG - UCT212 - Housing Unit UCT

€74.49

(Excl. VAT)

Price

(Excl. VAT)

€74.49

Product Description

These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Pros
Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Unit
Each

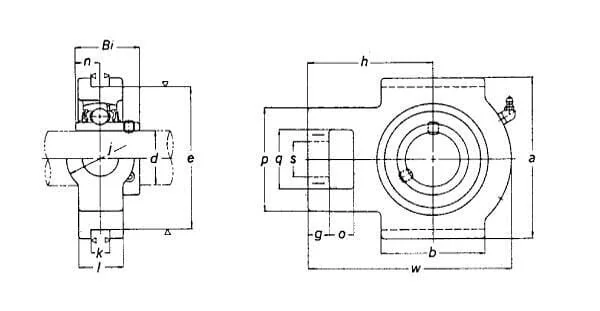

Total length
194 mm
aHousing width
146 mm
eHousing length
130 mm
Guide groove width
22 mm
bGuide groove length
102 mm
Mounting holes diameter
35 mm
dBearing inside diameter
60 mm
hShaft vertical distance
119 mm
BiBearing inner ring width
65,1 mm
Grease nipple thread diameter
M6
Bearing balls distance to mounting surface
25,4 mm
EAN
4054366900647
Manufacturer
INA/FAG
