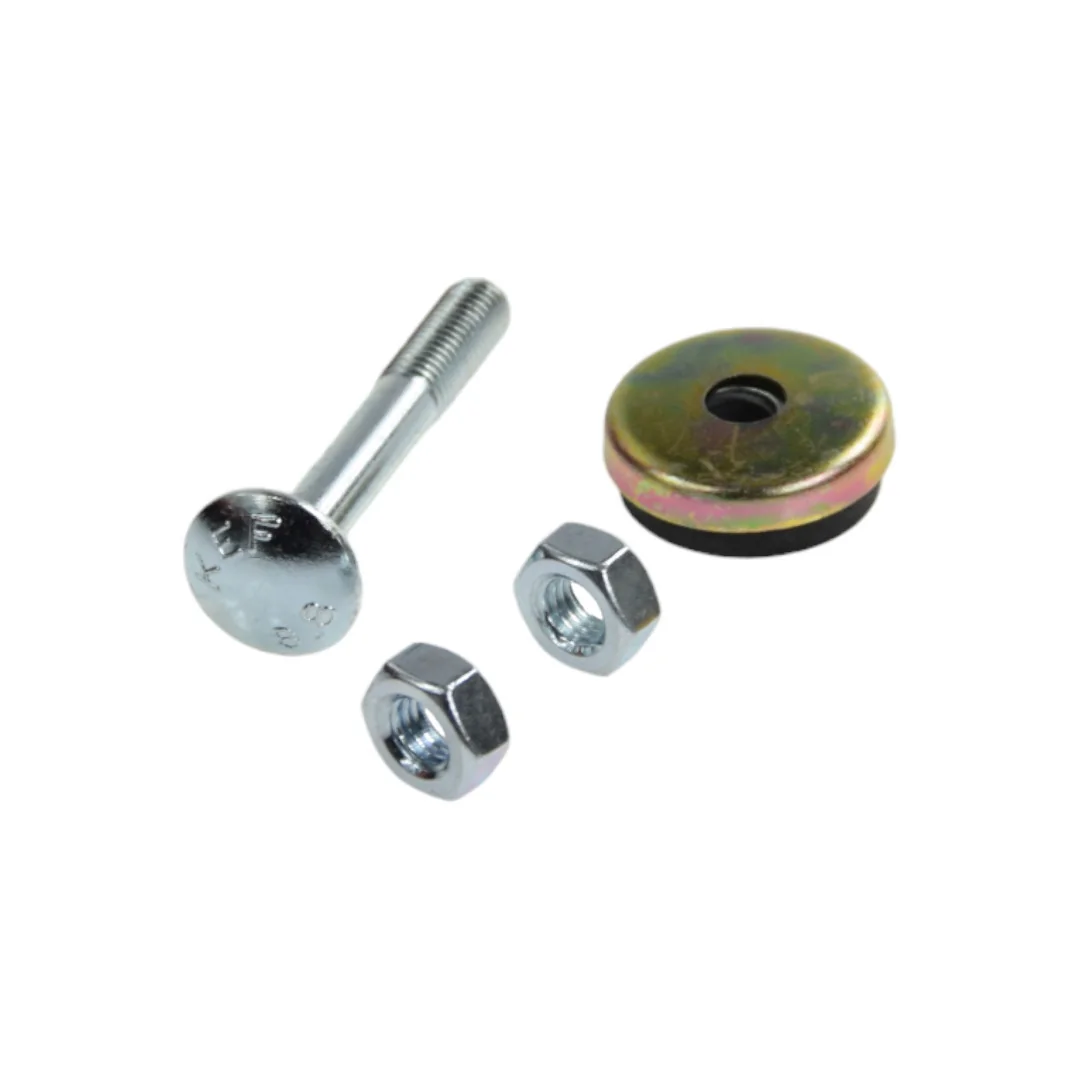

JAG - 235336.02 - Claas Harvester Screw
JAG - 235336.02 - Claas Harvester Screw
JAG - 235336.02 - Claas Harvester Screw
JAG - 235336.02 - Claas Harvester Screw
JAG - 235336.02 - Claas Harvester Screw
JAG - 235336.02 - Claas Harvester Screw

In stock - ready to ship

Order now for delivery between 10 July and 14 July
Free shipping on orders over €60

Pay Securely with

JAG - 235336.02 - Claas Harvester Screw

JAG - 235336.02 - Claas Harvester Screw

€4.15

(Excl. VAT)

Price

(Excl. VAT)

€4.15

Product Description

This screw secures the header assembly to the drive mechanism on a grain harvester. It passes through the cover and washer stack to clamp the targańca (straw-walker drive) components together. The set includes the matching nut, washers, and cover needed for a complete installation. A screw of this hardness class maintains the required clamp load under the vibration and shock loads typical of the header drive. On reinstallation, clean the threads and torque the screw to the specification for the assembly.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Fits

Claas

Dominator 38Dominator 48Dominator 58Dominator 68Dominator 76
Length
70 mm
Location
Header
Application
Harvesting machines
Thread Size
M10
Product Type
Screw
Set Includes
2x Nut (0002361710), Washer (0002375920), Washer (0006103630), Cover (0006103660), Screw (0002364640)
Hardness Class
8.8
Manufacturer
JAG
