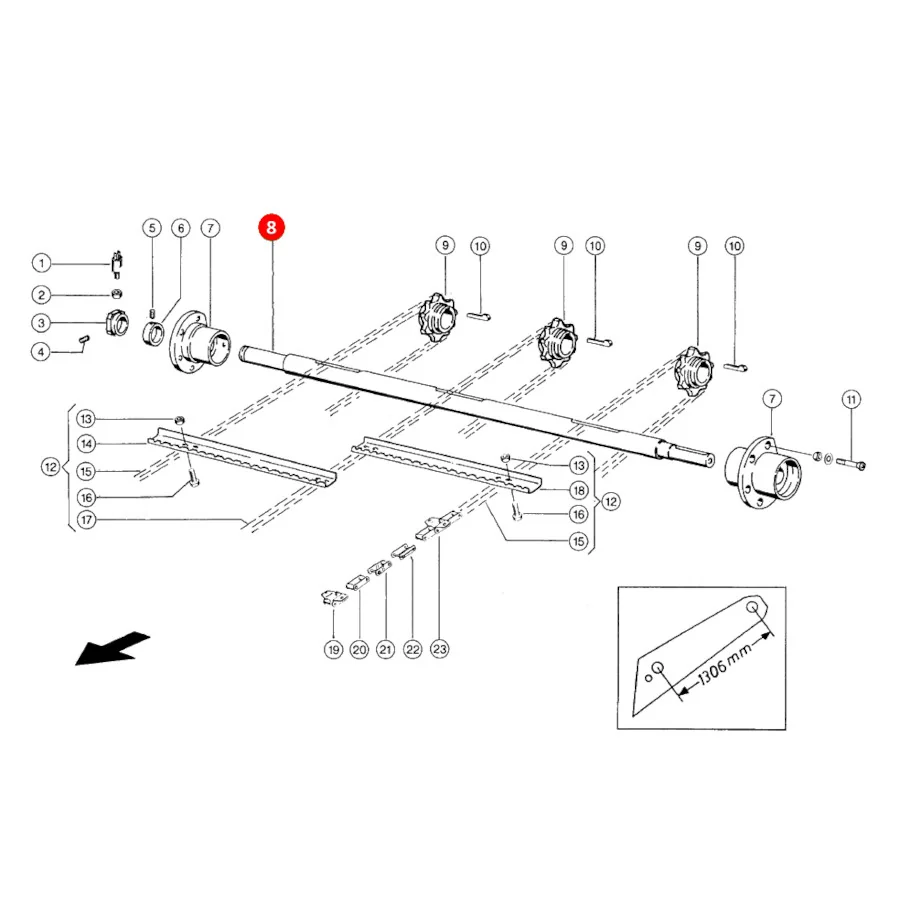

JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder
JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder
JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder
JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder
JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder
JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder

JAG - 650689.01 - Claas Upper Shaft For Inclined Feeder

€136.93

(Excl. VAT)

Price

(Excl. VAT)

€136.93

Product Description

This upper shaft is the driven component at the top of the inclined conveyor assembly. It transfers rotational force from the conveyor drive to the chain or belt that moves crop material up the feeder housing toward the threshing cylinder. The shaft rides in bearings at each end of the conveyor housing; its outer diameter matches the sprocket or pulley bore for a slip-free fit. Wear on the shaft surface or bearing journals causes chain slack and misalignment, which can lead to uneven feeding and increased load on the drive system. This component is manufactured to the original shaft geometry so that the existing sprockets and bearings mount without modification.
Jag

Product Details

Brand
JAG
Fits

Claas

Dominator 88Dominator 88 VXDominator 98Dominator 98 VXMedion 310Medion 320Medion 330Mega 202Mega 202 IIMega 203Mega 203 IIMega 204Mega 204 IIMega 350
Length
1544 mm
Location
Inclined conveyor
Application
Harvesting machines
Outer Diameter
50 mm
Manufacturer
JAG
