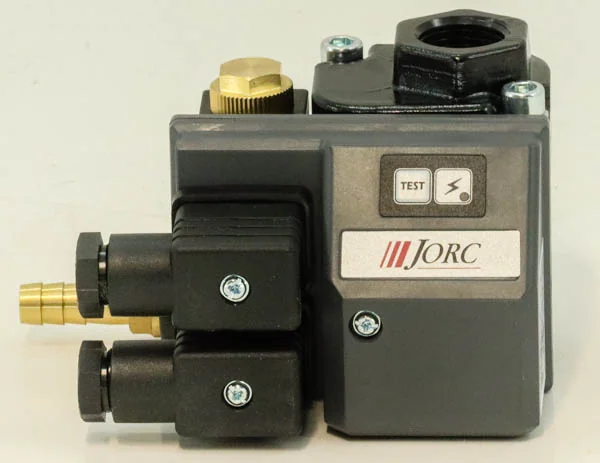

JORC - 3402 A1 JORC - Kaptiv-md-al g1/2 4.5 230vac 16bar (no)

Name: JORC - 3402 A1 JORC - Kaptiv-md-al g1/2 4.5 230vac 16bar (no)
Brand: JORC
SKU: jorc-3402-a1-jorc
Price: 364.7 EUR
Availability: InStock

SKU: jorc-3402-a1-jorc

€364.70€311.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 1 to 2 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€364.70

Brand

JORC

Note

Electronic condensate drain

Alarm

visual, LED indication - open contact

Valve seal

FPM

Valve type

2/2 way, directly controlled

Weight [kg]

0.662

Test function

yes

Supply voltage

230 VAC

System pressure

0 - 16 bar (0 - 230 psi)

Inlet connection

1/2" BSP or NPT

Protection class

IP65 (NEMA4)

Inlet height [mm]

Outlet connection

1/4" BSP, with hose nipple adapter made of brass

serviceable valve

yes

Housing - material

Corrosion-resistant aluminum, EP coating

Medium temperature

+1°C to +50°C

Side inlet adapter

yes, optional

Valve opening [mm]

Ambient temperature

+1°C to +50°C

max. compressor capacity

10 m³/min. (350 CFM)

Plug type (power and alarm)

DIN 43650-B

Integrated stainless steel screen

yes

max. compressor capacity (condensate)

45 liters of condensate per hour at 16 bar

Manufacturer

JORC

The JORC electronic condensate drain with part number 3402 A1 JORC operates at 230 VAC and features a 2/2-way direct-acting valve with FPM seals. It includes an integrated stainless steel filter, LED alarm indication, and a DIN 43650-B connector. The housing is made of corrosion-resistant aluminum with EP coating.

JORC is a manufacturer specializing in condensate management solutions for compressed air systems. The company was founded in 1991 and is headquartered in Heerlen, Netherlands. JORC has established itself as a reliable provider of innovative and energy-efficient products designed to remove condensate from compressed air, which is crucial for maintaining the efficiency and longevity of pneumatic equipment. The brand's product range primarily focuses on various types of condensate drains, oil/water separators, and related accessories. JORC is known for its timer-controlled drains, level-sensed drains, and zero-loss drains, which are engineered to minimize air loss and reduce energy consumption. These solutions are vital in industrial settings where compressed air is used extensively, including in workshops and facilities that maintain agricultural machinery. At Partao, you can find genuine JORC spare parts and components that support the maintenance of compressed air systems. Our catalog includes Diagnostic Tools, Hoses & Fittings, Oil Filters, Other Electrical Components, and Other Filters. JORC products are valued in various industrial applications for their robust construction and effectiveness in ensuring clean and dry compressed air. For agricultural workshops and service centers, reliable condensate management is essential to protect pneumatic tools and systems used in machinery repair and maintenance, contributing to operational efficiency and equipment lifespan. Shop more than 254 genuine JORC spare parts.
