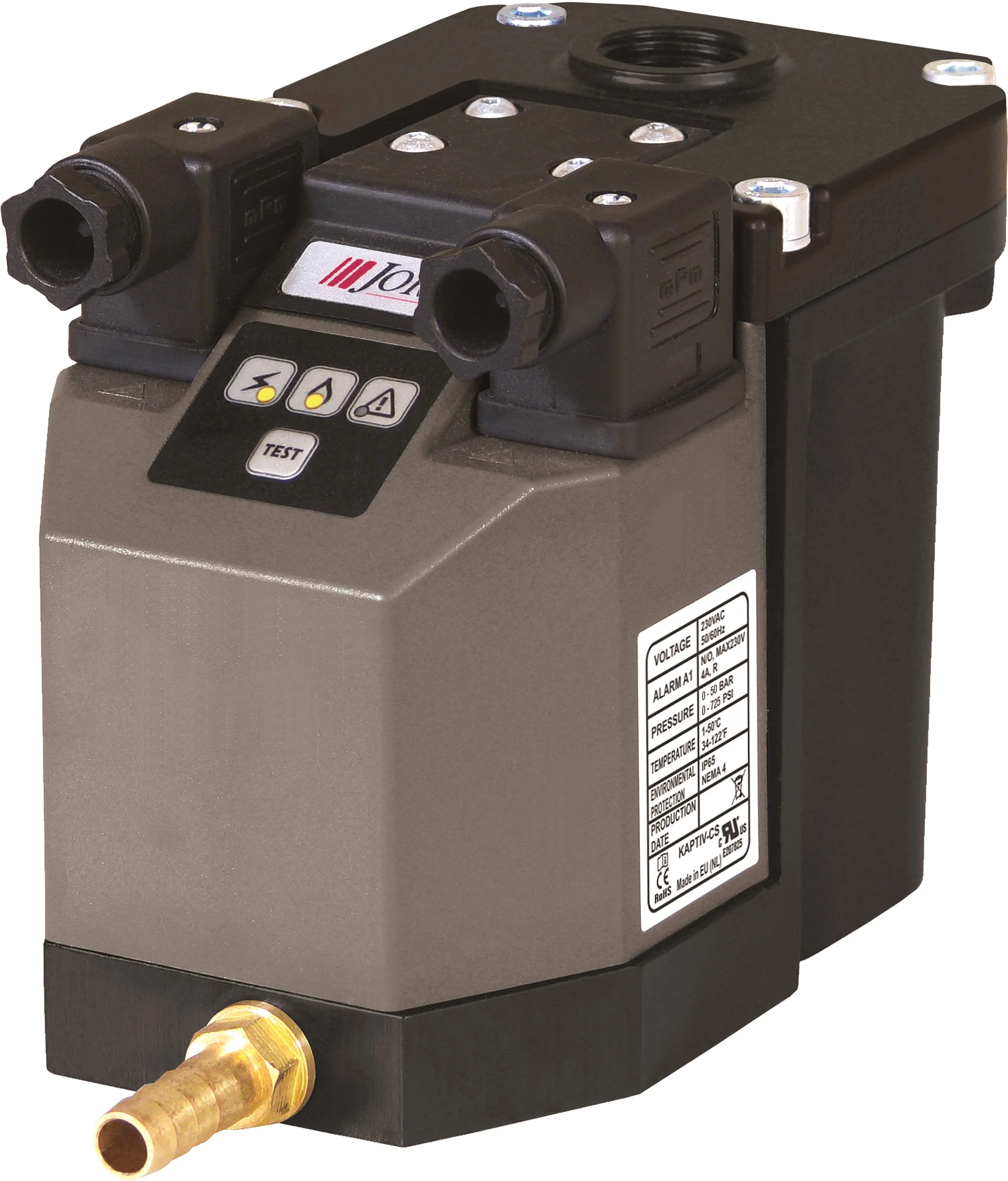

JORC - 3463 H1 JORC - Kaptiv-cs-hp-50 g1/2 1.8 24vac 50bar

SKU: jorc-3463-h1-jorc

JORC - 3463 H1 JORC - Kaptiv-cs-hp-50 g1/2 1.8 24vac 50bar

€539.51

(excl. VAT)
RRP:€1,119.00
Save €579.53
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€539.51

JORC
JORC is a manufacturer specializing in condensate management solutions for compressed air systems. The company was founded in 1991 and is headquartered in Heerlen, Netherlands. JORC has established itself as a reliable provider of innovative and energy-efficient products designed to remove condensate from compressed air, which is crucial for maintaining the efficiency and longevity of pneumatic equipment. The brand's product range primarily focuses on various types of condensate drains, oil/water separators, and related accessories. JORC is known for its timer-controlled drains, level-sensed drains, and zero-loss drains, which are engineered to minimize air loss and reduce energy consumption. These solutions are vital in industrial settings where compressed air is used extensively, including in workshops and facilities that maintain agricultural machinery. At Partao, you can find genuine JORC spare parts and components that support the maintenance of compressed air systems. Our catalog includes Diagnostic Tools, Hoses & Fittings, Oil Filters, Other Electrical Components, and Other Filters. Over 254 genuine JORC spare parts are available at Partao. JORC products are valued in various industrial applications for their robust construction and effectiveness in ensuring clean and dry compressed air. For agricultural workshops and service centers, reliable condensate management is essential to protect pneumatic tools and systems used in machinery repair and maintenance, contributing to operational efficiency and equipment lifespan.

Brand
Alarm
optical, LED indicators
Remark
Level-controlled condensate drain up to 50 bar
Valve seal
FPM
Valve type
2/2 way, directly controlled
Test function
yes
Supply voltage
24 VAC
System pressure
0 to 50 bar
Inlet connection
1/2" BSP or NPT, 3 inlet options
Inlet height [mm]
110 (Top) and 75 & 15 (Side)
Outlet connection
1/4" BSP, with hose nipple adapter made of brass
Protection rating
IP65 (NEMA4)
Housing - material
Corrosion-resistant aluminum, EP coating
Maintainable valve
yes
Medium temperature
+1°C to +50°C
Valve opening [mm]
1.8
Ambient temperature
+1°C to +50°C
Max. compressor capacity
120 liters of condensate per hour at 50 bar
Connector type (power and alarm)
DIN 43650-B
Integrated stainless steel screen
yes
Manufacturer
JORC
