Kramp-09200102612 - Insert A, Male 10P Screw
Kramp-09200102612 - Insert A, Male 10P Screw

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

Kramp-09200102612 - Insert A, Male 10P Screw

Kramp-09200102612 - Insert A, Male 10P Screw

€28.96

(Excl. VAT)

Price

(Excl. VAT)

€28.96

Product Description

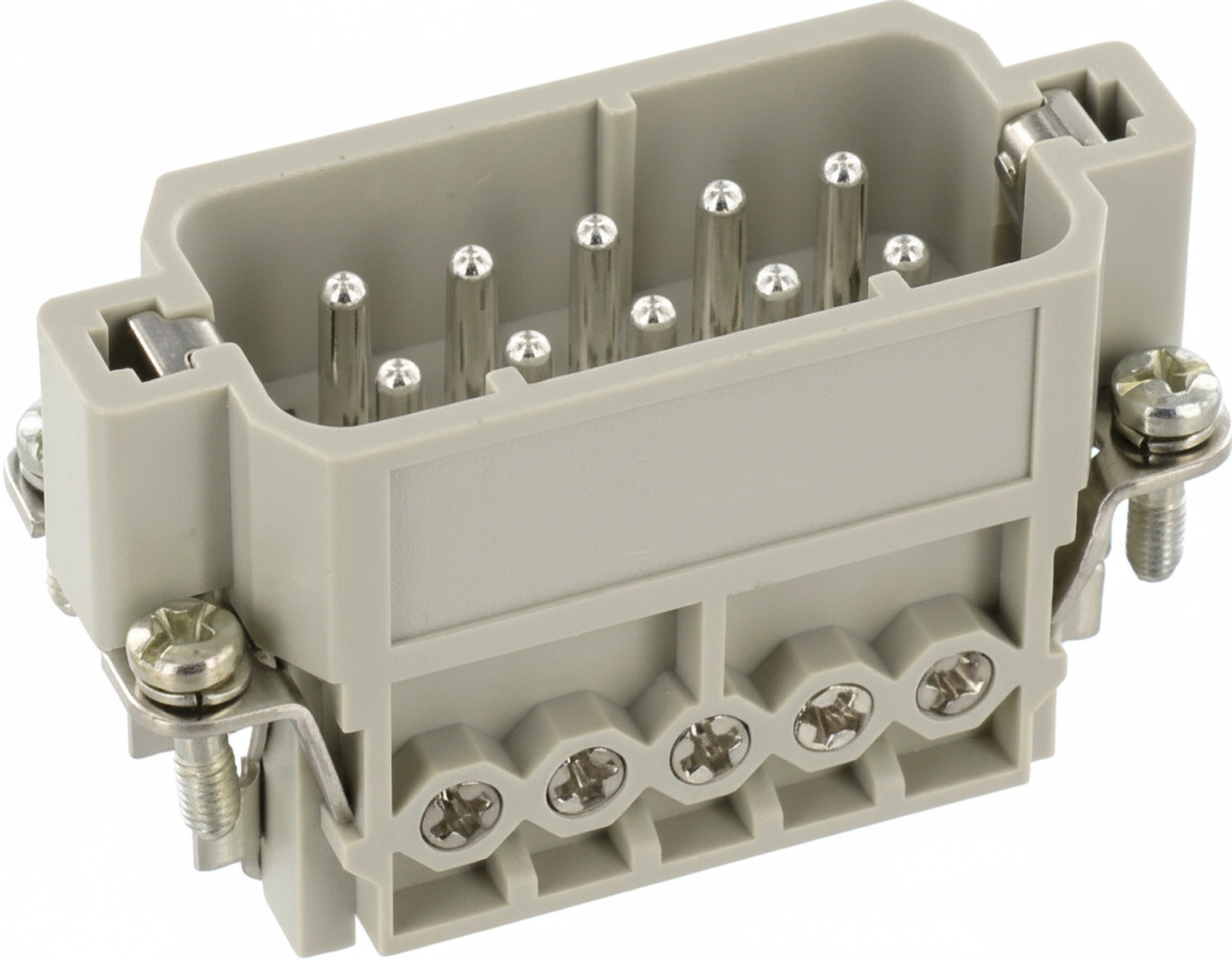

Genuine Harting Han A 10 Pos. Male Screw Insert, designed for robust industrial connector applications. This 10-pole (10 + PE) male insert features reliable screw termination, rated for 10A and 250V. Constructed from durable polycarbonate in RAL 7032 (pebble grey) with silver-plated copper alloy contacts, ensuring stable and long-lasting electrical connections. It offers high insulation resistance, a limiting temperature range of -40 to +125 °C, and is compliant with RoHS and REACH standards.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Harting
Number Of Poles
10
Protective Earth Contact
True
Rated Current (A)
10
Rated Voltage (V)
250
Rated Impulse Voltage Kv
4
Pollution (°)
3
Rated Voltage Ul (V)
600
Rated Voltage Csa (V)
600
Insulation Resistance (Ω)
10000000000
Contact Resistance M (Ω)
3
Min Operating Temperature (°C)
-40
Max Operating Temperature (°C)
125
Mating Cycles
500
Insert Material
Polycarbonate
Insert Color
RAL 7032 (pebble grey)
Contact Material
Copper alloy
Contact Surface
Silver plated
Flammability Rating Ul94
V-0
Termination Method
Screw
Min Conductor Cross Section (mm²)
0.75
Max Conductor Cross Section (mm²)
2.5
Stripping Length (mm)
7.5
Tightening Torque (Nm)
0.5
Connector Size
10 A
Gender
Male
Series
Han A
Weight (kg)
0.0202
Length (mm)
95
Width (mm)
51
Height (mm)
20
Quality
OEM Quality
Manufacturer
Harting
