Kramp - 200C1 - V-Belt Pulley 1 Groove C or SPC Diameter 209.60 mm Kramp

OEM Quality

SKU: kramp-200c1

Kramp - 200C1 - V-Belt Pulley 1 Groove C or SPC Diameter 209.60 mm Kramp

€55.36

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€55.36

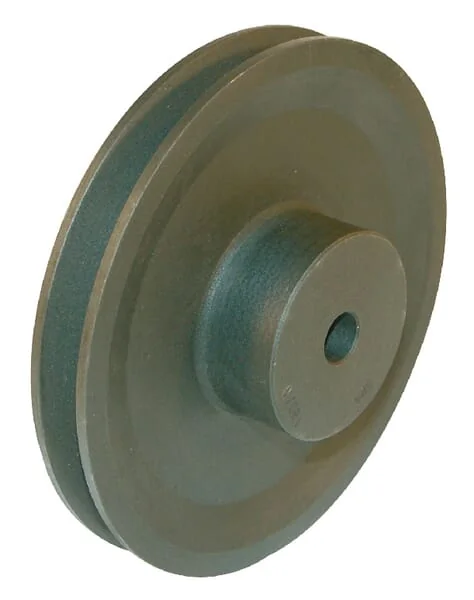

The Kramp 200C1 V-belt pulley is a robust component crafted from durable cast iron, designed for efficient power transmission. This pulley features a single groove, compatible with both C and SPC profile V-belts. It has an outer diameter of 209.60 mm, a hub diameter of 100 mm, and an overall length of 50 mm. The 200C1 series is available with various bore diameters to accommodate diverse shaft requirements, making it a versatile choice for agricultural, construction, and industrial machinery applications.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 40,730 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
200c1
Unit
Each
Material
Cast iron
Belt width
22 mm
LHub width
54 mm
Max. speed
30 m/s
Pulley type
3
Hub diameter
70 mm
Bore diameter
20 mm
BWorking width
34 mm
Technical info
Hub bore, keyway and tapped hole are optional Recommended minimum diameter of the v-belt pulley: For VB22 - 180 mm For SPC - 224 mm For XPC - 180 mm
Contains spokes
No
PPitch diameter
200 mm
Application range
Construction machines Forestry machinery Agricultural machinery Mechanical engineering
Number of grooves
1
dMax. bore diameter
42 mm
Designed for belt type
V-Belt
OPulley outside diameter
209,6 mm
Designed for V-belt profile
SPC
EAN
8719774921184
Manufacturer
Kramp
