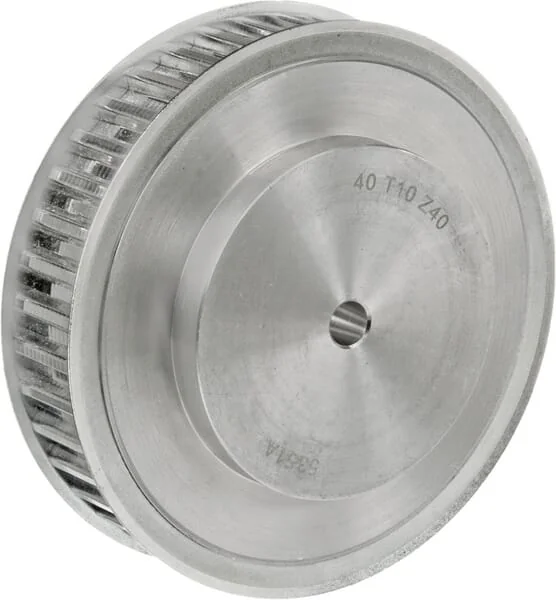

Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Kramp - 40T10402 - Timing Pulley Type -T10 40Z
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Kramp - 40T10402 - Timing Pulley Type -T10 40Z

Kramp - 40T10402 - Timing Pulley Type -T10 40Z

€29.56

(Excl. VAT)

Price

(Excl. VAT)

€29.56

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 85,290 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Weight
1,067 kg
Material
Aluminium
BHub width
40 mm
Belt width
25 mm
Pulley type
6F
Teeth pitch
10 mm
Hub diameter
80 mm
Technical info
Hub bore, keyway and tapped hole are optional Recommended maximum bore: D x 0.6
dBore diameter
10 mm
Number of teeth
40
b1Working width
30 mm
daPitch diameter
125,45 mm
ddTeeth diameter
127,45 mm
Max. bore diameter
40 mm
Designed for belt type
Timing belt
DBPulley outside diameter
131 mm
Designed for V-belt profile
T10
Manufacturer
Kramp
