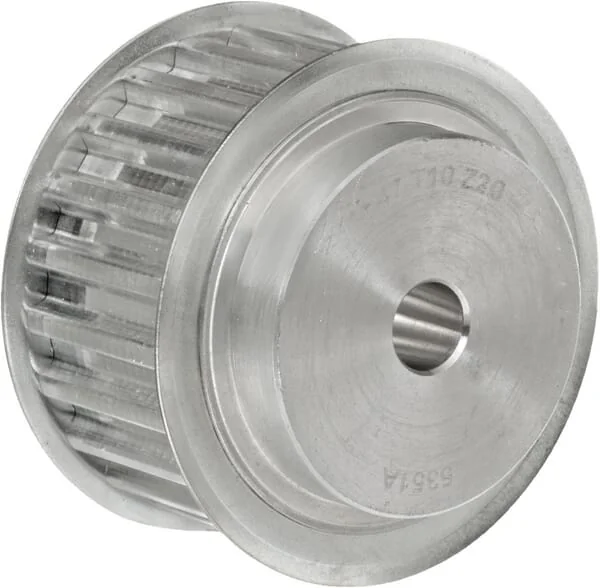

Kramp - 47T10202 - Timing Pulley Type -T10 20Z
Kramp - 47T10202 - Timing Pulley Type -T10 20Z
Kramp - 47T10202 - Timing Pulley Type -T10 20Z
Kramp - 47T10202 - Timing Pulley Type -T10 20Z
Kramp - 47T10202 - Timing Pulley Type -T10 20Z
Kramp - 47T10202 - Timing Pulley Type -T10 20Z

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Kramp - 47T10202 - Timing Pulley Type -T10 20Z

Kramp - 47T10202 - Timing Pulley Type -T10 20Z

€10.58

(Excl. VAT)

Price

(Excl. VAT)

€10.58

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,529 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Weight
0,322 kg
Material
Aluminium
BHub width
47 mm
Belt width
32 mm

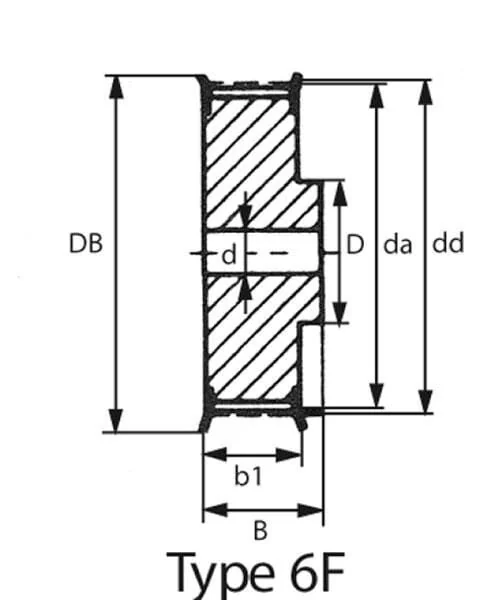

Pulley type
6F
Teeth pitch
10 mm
Hub diameter
46 mm

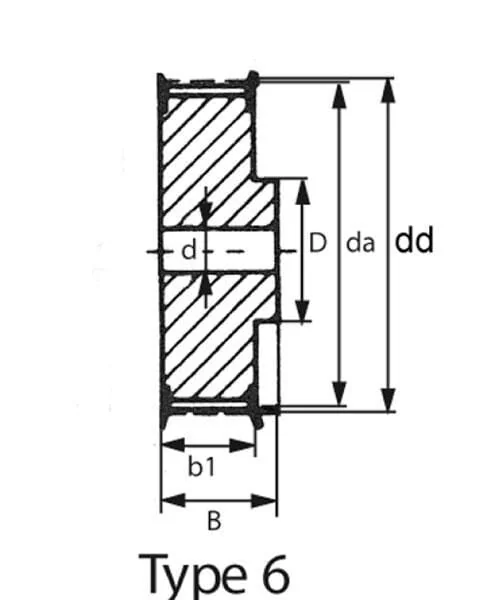

Technical info
Hub bore, keyway and tapped hole are optional Recommended maximum bore: D x 0.6
dBore diameter
12 mm
Number of teeth
20
b1Working width
37 mm
daPitch diameter
61,8 mm
ddTeeth diameter
63,8 mm
Max. bore diameter
24 mm
Designed for belt type
Timing belt
DBPulley outside diameter
66 mm
Designed for V-belt profile
T10
Manufacturer
Kramp
