Home
Electrical, Lighting & Batteries
Other Electrical Components
Kramp - CAS667301KR - Camera System 7" Quad 114
Kramp - CAS667301KR - Camera System 7" Quad 114
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - CAS667301KR - Camera System 7" Quad 114

Kramp - CAS667301KR - Camera System 7" Quad 114

€341.30

(Excl. VAT)

Price

(Excl. VAT)

€341.30

Product Description

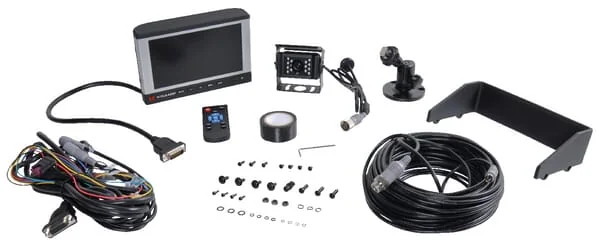

Application: For use in challenging environments For construction and agricultural machines Benefits: Simultaneous monitoring e.g. of harvesting or reversing procedures or blind spots Improved visibility in low-light environments High quality and long service life Consist of: TFT widescreen monitor with colour and sound (7", 16:9) Camera with built-in microphone Connecting cable: 20 m Remote control (on/off, camera selection, menu, quad display and volume control) Connection cable for monitor Fasteners Installation prop Removable shockproof sun visor Details: Four camera inputs and automatic channel switching The camera has 18 infrared LEDs Robust and resistant to vibration (max. 5G) Properties: Monitor-integrated switch housing Separate mirror-imaging of all channels On-screen menu in four languages Temperature range (monitor): -20 to +70 C Temperature range (camera): -30 to +70 C Lens: Sony 1/4" CCD Camera resolution: NTSC 510 x 492, 420 lines of horizontal resolution Signal-to-noise ratio > 48 dB Camera power supply: 12 V AC Camera power consumption: < 2 watt Technical information: 1-year warranty Meets standards E13, ROHS, CE, Salt-Spray and FCC The camera is waterproof (IP68) The screen is not waterproof (IP30) The camera has a stable DIN screw connection (IP67)
Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 86,639 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Product Details

Brand
Kramp
Unit
Set
Benefits
Simultaneous monitoring e.g. of harvesting or reversing procedures or blind spots Improved visibility in low-light environments High quality and long service life
Properties
Monitor-integrated switch housing Reproduces up to 4 camera images simultaneously, play modes: single, double, quadruple Separate mirror-imaging of all channels On-screen menu in four languages Temperature range (monitor): -20 to +70 C Temperature range (camera): -30 to +70 C  Lens: Sony 1/4" CCD Camera resolution: NTSC 510 x 492, 420 lines of horizontal resolution Signal-to-noise ratio > 48 dB Camera power supply: 12 V AC Camera power consumption: < 2 watt
Consists of
TFT widescreen monitor with colour and sound (7", 16:9) Camera with built-in microphone Connecting cable: 20 m Remote control (on/off, camera selection, menu, quad display and volume control) Connection cable for monitor Fasteners Installation prop Removable shockproof sun visor
Technical info
1-year warranty Meets standards E13, ROHS, CE, Salt-Spray and FCC The camera is waterproof (IP68) The screen is not waterproof (IP30) The camera has a stable DIN screw connection (IP67)
Application range
For use in challenging environments For construction and agricultural machines
Supply voltage range
12-24 V
Horizontal viewing angle
114 °
EAN
8716106195084
Manufacturer
Kramp

Similar items you might like

  • Kramp

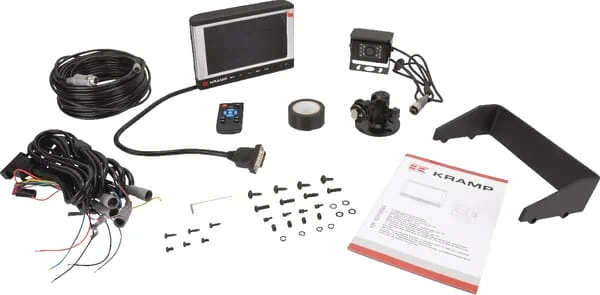

    Kramp - CAS667401KR - Camera System 7" Quad TFT
