Kramp - CCND5025MI - Compact Cylinder
Kramp - CCND5025MI - Compact Cylinder
Kramp - CCND5025MI - Compact Cylinder
Kramp - CCND5025MI - Compact Cylinder
Kramp - CCND5025MI - Compact Cylinder
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - CCND5025MI - Compact Cylinder

Kramp - CCND5025MI - Compact Cylinder

€78.16

(Excl. VAT)

Price

(Excl. VAT)

€78.16

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

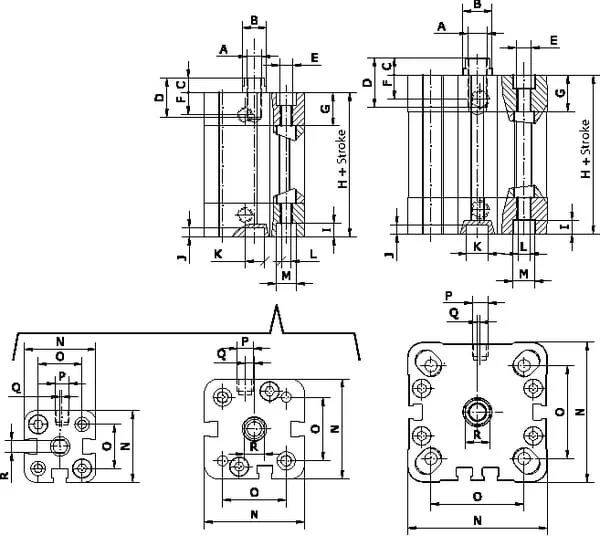

Product Details

Brand
Kramp
Type
Double acting
Unit
Each
NWidth
67 mm
Stroke
25 mm
Min. length
78 mm
Damping type
Flexible - both sides
ISO standard
21287 228/1
Rod material
Stainless steel AISI 420
BRod diameter
16 mm
Bore diameter
50 mm
Piston diameter
50 mm
Sealing material
Polyurethane
Cylinder material
Aluminium
Max. working pressure
10 BAR
Min. working pressure
1 BAR
Rod surface treatment
Anodised
Cylinder head material
Die-cast alloy
DMounting length - rod connection
16 mm
Mounting type - cylinder connection
Thread
Cylinder length without rod and head
45 mm
Mounting thread type - rod connection
Metric
G,lHousing front mounting holes length
14,6 mm4,7 mm
MHousing front mounting holes diameter
10,5 mm
OCylinder head mounting holes distance
46,5 mm
Housing side mounting holes thread type
G
AMounting thread diameter - rod connection
M10
PHousing side mounting holes thread diameter
1/8 Inch
EHousing front mounting holes thread diameter
M8
Mounting diameter (width) - cylinder connection
8 mm
Theoretical force at 6 bar pressure - advancing
1178 N
Theoretical force at 6 bar pressure - retracting
1058 N
Mounting thread type - male/female - rod connection
Female
CMounting thread to cylinder head distance - rod connection
8 mm
Manufacturer
Kramp
