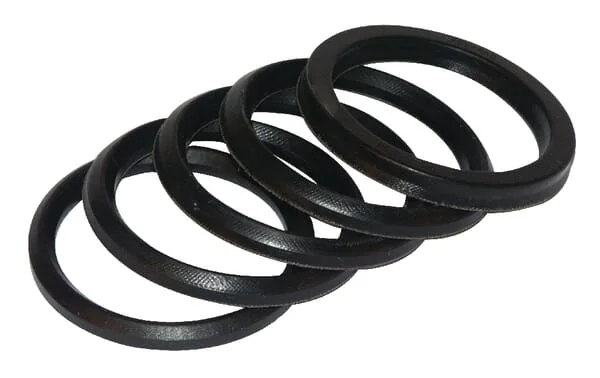

Kramp - CH5065225 - Kramp Stacking Sleeve 50 x 65 x 22.5 - CH5065225, 8719607301558

OEM Quality

SKU: kramp-ch5065225

Kramp - CH5065225 - Kramp Stacking Sleeve 50 x 65 x 22.5 - CH5065225, 8719607301558

€37.09€31.70 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€37.09

Brand
Kramp
Part Numbers
CH5065225; 8719607301558
Pros
Maximum sealing effect Good static seal Increased pre-load
Unit
Each
Includes
Reinforced mesh V-rings Rubber V-rings
Material
Rubber
Product details
Consists of several loose seal rings Natural pre-tensioning Cuff can be installed in adjustable chamber Can be used as rod seal and piston seal For double-acting and single-acting cylinders Maximum operating pressure type 7 and 13 : 700 bar Maximum operating pressure type 9 and 11 : 400 bar
CGroove thickness
22,5 mm
Max. sliding speed
0,5 m/s
ØdInside diameter
50 mm
ØDOutside diameter
65 mm
Max. working temperature
100 °C
Min. working temperature
-30 °C
EAN
8719607301558
Manufacturer
Kramp

Consists of several loose seal rings Natural pre-tensioning Cuff can be installed in adjustable chamber Can be used as rod seal and piston seal For double-acting and single-acting cylinders Maximum operating pressure type 7 and 13 : 700 bar Maximum operating pressure type 9 and 11 : 400 bar
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
